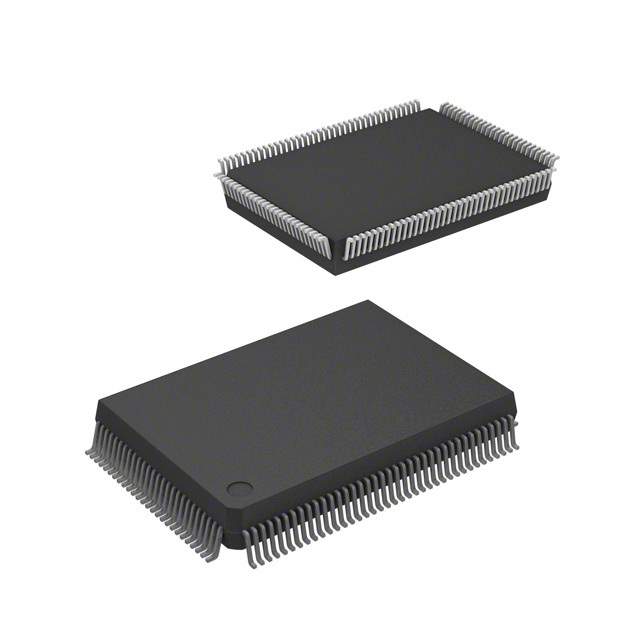

The HD64F2329EVF25 is a microcontroller manufactured by Renesas Electronics America. It is part of Renesas's broad range of embedded microcontrollers that are designed to provide processing power and peripheral functions for various applications. It's used in several sectors, providing abilities for real-time control, data collection, and communication. This specific model belongs to Renesas's lineup targeting applications in industrial control, consumer electronics, and automotive systems.

Applications:

• Industrial automation systems
• Consumer electronics devices
• Automotive electronics applications
• Motor control systems
• Data acquisition units

Features:

• 16-bit CPU core
• On-chip Flash memory for program storage
• On-chip SRAM for data storage
• Multiple timers/counters
• Serial communication interfaces (UART, SPI, I2C)
• Analog-to-Digital Converter (ADC)
• PWM (Pulse Width Modulation) outputs
• Interrupt controller
• Low-power operation modes

Benefits:

• Integrated flash memory eliminates the need for external storage devices.
• Low power consumption allows battery power operation.
• Serial communications are compatible with industry standards.
• The ADC allows the microcontroller to process analog sensor inputs directly.
• Timers provide system timing.

Technical Specifications:

Refer to the official Renesas datasheet for the HD64F2329EVF25 for complete technical specifications, including memory sizes, clock speed, voltage range, and electrical characteristics. This document contains essential details, including package dimensions and temperature ratings. The number of I/O pins, package type, and flash and RAM sizes are specific to this particular microcontroller. The microcontroller uses surface mount assembly.
