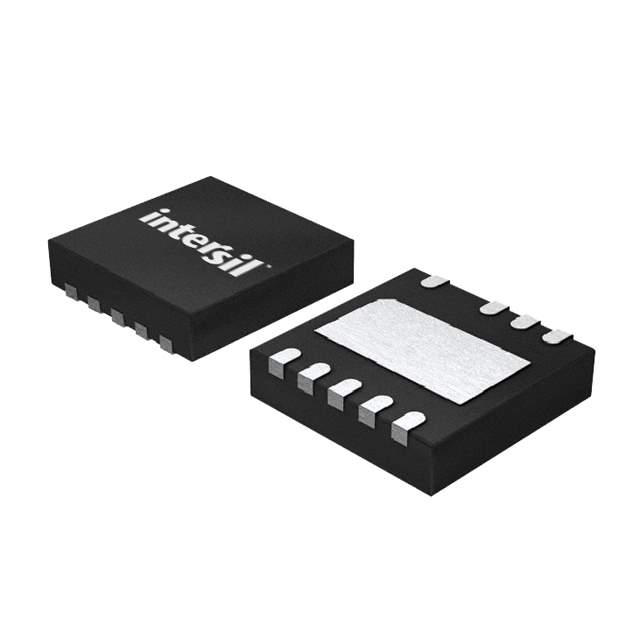

ISL2101AAR3Z

Name: ISL2101AAR3Z
Brand: Renesas Electronics America
SKU: 606815
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ISL2101AAR3Z
Manufacturer	Renesas Electronics America
Catalog	PMIC - Gate Drivers
Description	100V, 2A Peak, High Frequency Half-Bridge Drivers \| IC DVR HALF-BRDG HF 100V 2A 9DFN
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Integrated Circuits
Manufacturer	Renesas Electronics America Inc.
Packaging	Tube
Driven Configuration	Half-Bridge
Channel Type	Independent
Number of Drivers	2
Gate Type	N-Channel MOSFET
Supply Voltage (V)	9V ~ 14V
Logic Voltage - VIL, VIH	1.4V, 2.2V
Current - Peak Output (Source, Sink)	2A, 2A
Input Type	Non-Inverting
High Side Voltage - Max (Bootstrap)	114V
Rise / Fall Time	10ns, 10ns
Temperature Range - Operating	-40°C ~ 125°C
Mounting Style	SMD
Manufacturer Package	9-VFDFN Exposed Pad
Supplier Device Package	9-DFN-EP (3x3)
Family Part Number	ISL2101A
Manufacturer Pack Quantity	100
MSL Level	2 (1 Year)
Win Source Part Number	1189503-ISL2101AAR3Z
Manufacturer Homepage	www.intersil.com/cda/home
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian ISL2101AAR3Z CAD Model

Alternative Products

Description

The ISL2101AAR3Z is an integrated circuit manufactured by Renesas Electronics America Inc.

Packaging: tube
Mounting Style: SMD
Channels: independent
Input Types: non-inverting
Driven Configuration: half-bridge
Drivers: 2
Gate Type: N-channel MOSFET
Logic Voltage: VIL 1.4V and VIH 2.2V
Peak Output Current: 2A
High-Side Voltage (Max): 114V
Operating Temperature: -40°C to 125°C
Supplier Device Package: 9-DFN-EP
