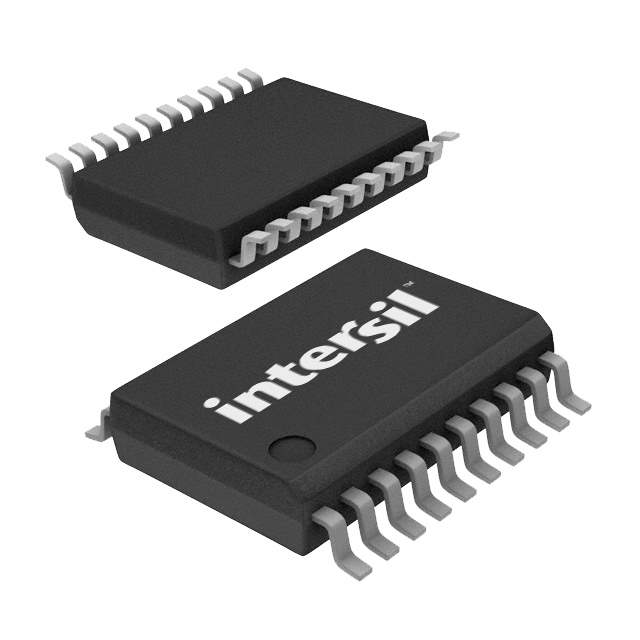

ISL6754AAZA-T Real Image
Same model may have multiple batches, images only for reference.

ISL6754AAZA-T

Part No ISL6754AAZA-T
Manufacturer Renesas Electronics America
Catalog PMIC - Voltage Regulators - DC DC Switching Controllers
Description IC REG CTRLR FULL-BRIDGE 20QSOP / Full-Bridge Regulator Positive, Isolation Capable Output Step-Up/Step-Down DC-DC Controller IC 20-QSOP
Datasheet
ISL6754AAZA-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Power Management (PMIC)>DC DC Switching Controllers
Manufacturer Renesas Electronics America Inc
Packaging Reel - TR
Product Status Obsolete
Output Type Transistor Driver
Function Step-Up/Step-Down
Output Configuration Positive, Isolation Capable
Topology Full-Bridge
Number of Outputs 1
Output Phases 1
Voltage - Supply (Vcc/Vdd) 9V ~ 16V
Frequency - Switching Up to 2MHz
Duty Cycle (Max) 99%
Synchronous Rectifier Yes
Clock Sync No
Control Features Frequency Control, Ramp, Soft Start
Temperature Range - Operating -40°C ~ 105°C
Mounting Surface Mount
Case / Package 20-SSOP (0.154", 3.90mm Width)
Supplier Device Package 20-QSOP
Base Product Number ISL6754
RoHS Status ROHS3 Compliant
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 2,500
Win Source Part Number 1320607-ISL6754AAZA-T
Ultra Librarian 3D Model Ultra Librarian ISL6754AAZA-T CAD Model

Description

The ISL6754AAZA-T is a DC DC switching controller from Renesas Electronics America Inc.

  • Function: step-up/step-down function
  • Topology: full-bridge topology
  • Output Type: transistor driver
  • Frequency: up to 2MHz
  • Control Feature: frequency control, ramp, and soft start
  • Output Configuration: positive
  • Isolation Capable: Yes
  • Rectifier: synchronous rectifier
  • Output Phase: 1
  • Duty Cycle: 99%
  • Supplier Device Package: 20-QSOP
  • Operating Temperature: -40°C ~ 105°C
  • Status: obsolete
  • ROHS3 Compliant: Yes
