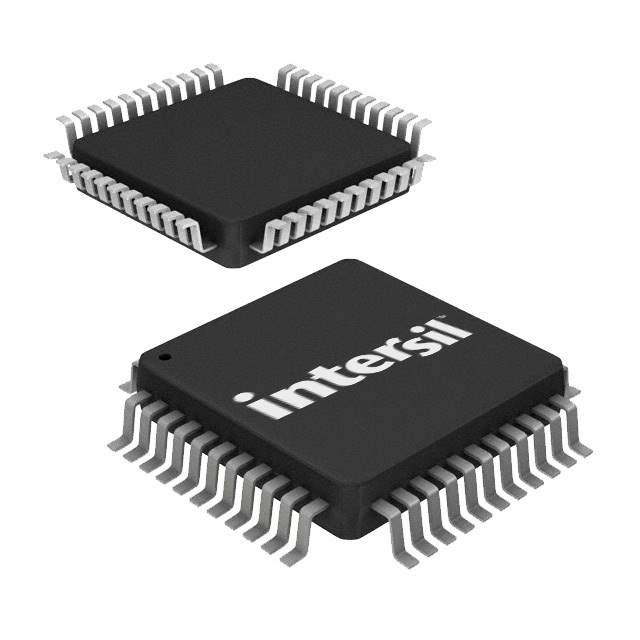

ISL78225ANEZ

Name: ISL78225ANEZ
Brand: Renesas Electronics America
SKU: 814011
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	ISL78225ANEZ
Manufacturer	Renesas Electronics America
Catalog	PMIC - Voltage Regulators - DC DC Switching Controllers
Description	IC REG CTRLR BOOST 44TQFP / 4-Phase Interleaved Boost PWM Controller with Light Load Efficiency Enhancement
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Renesas Electronics America Inc.
Packaging	Tray
Output Type	Transistor Driver
Function	Step-Up
Output Configuration	Positive
Topology	Boost
Number of Outputs	4
Output Phases	4
Voltage - Supply (Vcc/Vdd)	4.75V ~ 5.25V
Frequency - Switching	75kHz ~ 1MHz
Duty Cycle (Maximum)	91.7%
Synchronous Rectifier	No
Clock Sync	Yes
Control Features	Enable, Frequency Control, Power Good, Soft Start
Temperature Range - Operating	-40°C ~ 125°C
Manufacturer Package	44-TQFP Exposed Pad
Supplier Device Package	44-MQFP (10x10)
Part Number Series	ISL78225
Manufacturer Pack Quantity	160
MSL Level	3 (168 Hours)
Popularity	Low
Supply and Demand Status	Limited
Win Source Part Number	814014-ISL78225ANEZ
Ultra Librarian 3D Model	Ultra Librarian ISL78225ANEZ CAD Model

Alternative Products

Description

The Renesas Electronics America ISL78225ANEZ is a step-up transistor driver with a boost topology and a frequency switching range of 75kHz to 1MHz.

Topology: Boost
Frequency Switching Range: 75kHz to 1MHz
Outputs: 4
Output Configuration: Positive
Clock Sync: Yes
Supplier Device Package: 44-MQFP (10x10)
Temperature Range: -40℃ to 125℃
Duty Cycle (Maximum): 91.7%
Supply and Demand Status: Limited
Voltage Supply (Vcc/Vdd): 4.75V ~ 5.25V
