The ISL80505IRAJZ-T7A is a high-efficiency, synchronous step-down DC/DC regulator capable of delivering up to 5A of continuous output current. This regulator, manufactured by Renesas Electronics America, is designed for a wide range of applications requiring a compact and efficient power solution. It integrates advanced features to ensure optimal performance and protection.

Applications

• Point of Load (POL) Converters: Providing regulated power to individual components or subsystems in electronic devices.
• FPGA and DSP Power: Powering Field Programmable Gate Arrays (FPGAs) and Digital Signal Processors (DSPs).
• Industrial Equipment: Supplying power to various industrial automation and control systems.
• Networking Equipment: Used in routers, switches, and other networking devices to regulate power.
• Embedded Systems: Providing efficient power conversion in embedded applications.

Features

• High Efficiency: Achieves high efficiency across a wide load range, minimizing power losses and heat generation.
• Integrated MOSFETs: Incorporates both high-side and low-side MOSFETs, reducing external component count and simplifying design.
• Wide Input Voltage Range: Operates from a wide input voltage range, accommodating various power sources.
• Adjustable Output Voltage: Allows for precise adjustment of the output voltage to meet specific application requirements.
• Overcurrent Protection (OCP): Protects the regulator and load from damage due to excessive current.
• Over Temperature Protection (OTP): Shuts down the regulator when the die temperature exceeds a safe limit.
• Enable Input: Provides an enable input for controlling the regulator's operation.
• Power Good Output: Indicates when the output voltage is within the specified range.

Benefits

• Compact Solution: Integrated MOSFETs and minimal external components reduce board space requirements.
• High Reliability: Robust protection features ensure reliable operation in demanding environments.
• Ease of Use: Simplified design and minimal external components streamline the design process.
• Energy Efficiency: High efficiency reduces power consumption and heat dissipation.
• Flexible Design: Adjustable output voltage allows for customization to meet specific application needs.

Additional Details

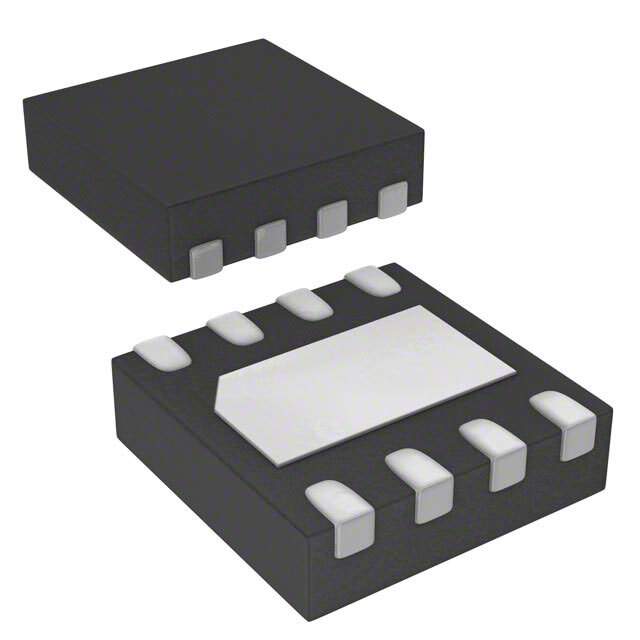

The ISL80505IRAJZ-T7A uses a synchronous rectification topology to achieve high efficiency. It operates at a high switching frequency, which allows for smaller external components. The device is available in a compact package (e.g., QFN) and is designed for surface mount assembly.

The regulator features a current-mode control architecture, which provides excellent line and load regulation. It also includes soft-start circuitry to limit inrush current during startup. The thermal shutdown feature protects the regulator from overheating by disabling the output when the die temperature reaches the thermal limit.
