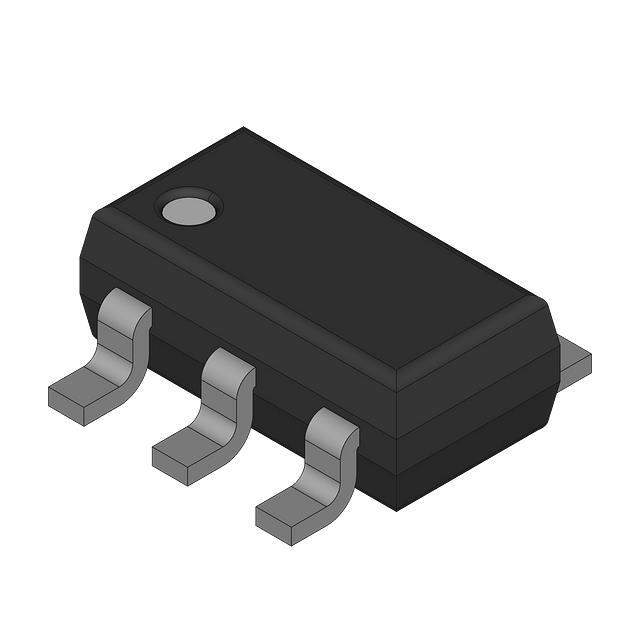

NNCD27G(0)-T1-A Real Image
Same model may have multiple batches, images only for reference.

NNCD27G(0)-T1-A

Part No NNCD27G(0)-T1-A
Manufacturer Renesas Electronics America
Catalog TVS - Diodes
Description NNCD27G(0)-T1-A - ELECTROSTATIC / Clamp Ipp Tvs Diode Surface Mount 5-Mini Mold
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Renesas
Package Bulk
Product Status Obsolete
Type Zener
Unidirectional Channels 4
Voltage - Reverse Standoff (Typ) 21V (Max)
Voltage - Breakdown (Min) 25.1V
Power - Peak Pulse 85W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 25pF @ 1MHz
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Package / Case SC-74A, SOT-753
Supplier Device Package 5-Mini Mold
RoHS Status RoHS non-compliant
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0050
Other Names 2156-NNCD27G(0)-T1-A
Standard Package 1
Win Source Part Number 1082557-NNCD27G(0)-T1-A
Ultra Librarian 3D Model Ultra Librarian NNCD27G(0)-T1-A CAD Model

Description

The Renesas NNCD27G(0)-T1-A is a Zener diode from Renesas.

  • Function: Circuit protection
  • Category: TVS - diodes
  • Part Number: 1082557-NNCD27G(0)-T1-A
  • Package: Bulk
  • Voltage Breakdown: 25.1V
  • Voltage Reverse Standoff: 21V (max)
  • Power Peak Pulse: 85W
  • Capacitance: 25pF @ 1MHz
  • Temperature Range: 150°C (TJ)
  • Product Status: Obsolete
  • RoHS Compliant: No
