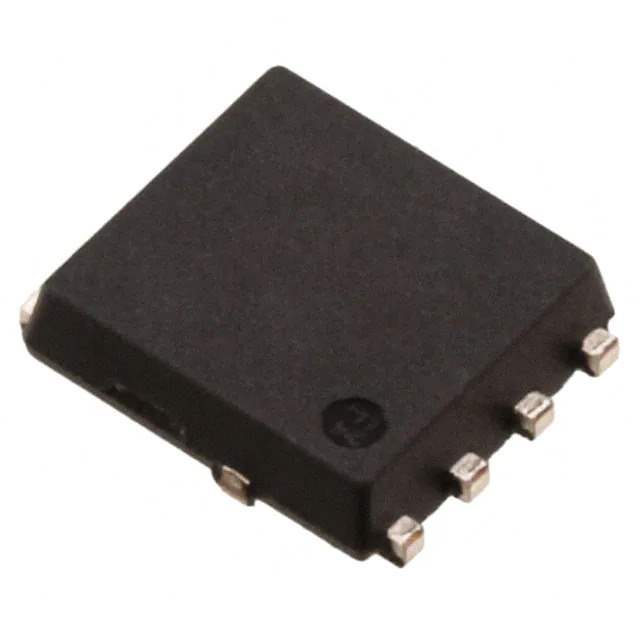

Same model may have multiple batches, images only for reference.

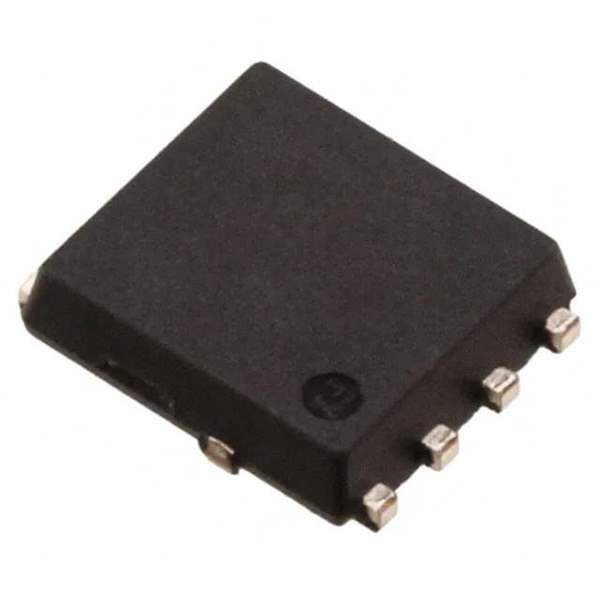

NP50N04YUK-E1-AY Real Image
Same model may have multiple batches, images only for reference.

NP50N04YUK-E1-AY

Part No NP50N04YUK-E1-AY
Manufacturer Renesas Electronics America
Catalog Transistors - FETs, MOSFETs - RF
Description LOW VOLTAGE POWER MOSFET
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr Renesas Electronics America
Series Automotive, AEC-Q101
Package Tape & Reel
Product Status Active
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 40 V
Current - Continuous Drain (Id) @ 25°C 50A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 4.8mOhm @ 25A, 10V
Vgs(th) (Max) @ Id 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 57 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 3200 pF @ 25 V
Power Dissipation (Max) 1W (Ta), 97W (Tc)
Temperature Range - Operating 175°C
Mounting Type Surface Mount
Supplier Device Package 8-HSON (5x5.4)
Package / Case 8-PowerLDFN
Standard Package 2,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 832713-NP50N04YUK-E1-AY
Ultra Librarian 3D Model Ultra Librarian NP50N04YUK-E1-AY CAD Model

Description

The NP50N04YUK-E1-AY, an N-Channel MOSFET transistor from Renesas Electronics America, is designed for automotive applications.

  • Drain-to-Source Voltage: 40V
  • Continuous Drain Current: 50A
  • Maximum On-Resistance: 4.8mOhm
  • Gate Charge: 57nC
  • Operating Temperature Range: -55°C to 175°C
  • Series: NP75N04
