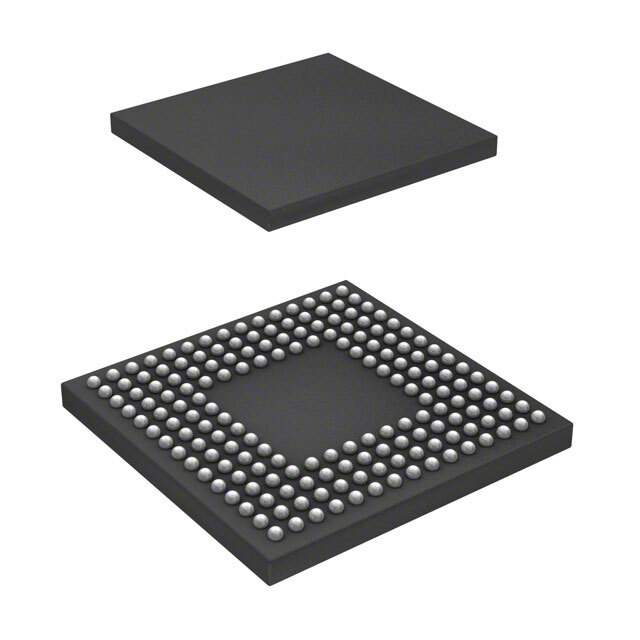

R5F563NBDDBG#U0 Real Image
Same model may have multiple batches, images only for reference.

R5F563NBDDBG#U0

Part No R5F563NBDDBG#U0
Manufacturer Renesas Electronics America
Catalog Embedded - Microcontrollers
Description IC MCU 32BIT 1MB FLASH 176LFBGA / MCU 32-bit RX RISC 1MB Flash 2.5V/3.3V 176-Pin LFBGA Tray
Datasheet
R5F563NBDDBG#U0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Renesas Electronics America
Series RX600
Packaging Tray
Core Processor RX
Core Size 32-Bit
Speed 100MHz
Connectivity CAN, EBI/EMI, Ethernet, I2C, LIN, SCI, SPI, USB
Peripherals DMA, LVD, POR, PWM, WDT
Number of I/O 133
Program Memory Size 1MB (1M x 8)
Program Memory Type FLASH
EEPROM Size 32K x 8
RAM Size 128K x 8
Supply Voltage 2.7 V ~ 3.6 V
Data Converters A/D 8x10b, 21x12b, D/A 2x10b
Oscillator Type Internal
Operating Temperature Range -40°C ~ 85°C (TA)
Package 176-LFBGA
Manufacturer Package 176-LFBGA (13x13)
Win Source Part Number 792993-R5F563NBDDBG#U0
Popularity Medium
Supply and Demand Status Limited
Family Name R5F563
Introduction Date December 27, 2011
ECCN 3A991
Country of Origin Taiwan
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian R5F563NBDDBG#U0 CAD Model

Description

The Renesas RX600 series is a 32-bit microcontroller with a core processor of RX.

  • Speed: 100MHz
  • Program Memory Size: 1MB (1M x 8)
  • Program Memory Type: FLASH
  • I/O Ports: 133
  • RAM Size: 128K x 8
  • Data Converters: A/D 8x10b, 21x12b, D/A 2x10b
  • Oscillator Type: Internal
  • Supply Voltage: 2.7 V ~ 3.6 V
  • Peripherals: DMA, LVD, POR, PWM, WDT
  • Suitable for: Integrated circuit (IC)
  • Estimated EOL Date: 2026
