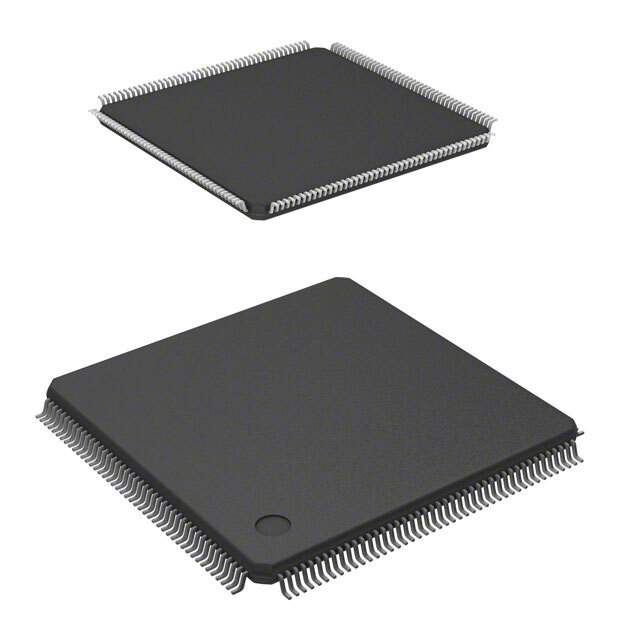

R5F564MGDDFC#11 Real Image
Same model may have multiple batches, images only for reference.

R5F564MGDDFC#11

Part No R5F564MGDDFC#11
Manufacturer Renesas Electronics America
Catalog Embedded - Microcontrollers
Description IC MCU 32BIT 2.5MB FLSH 176LFQFP / RXv2 series Microcontroller IC 32-Bit Single-Core 120MHz 2.5MB (2.5M x 8) FLASH 176-LFQFP (24x24)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr Renesas Electronics America Inc
Series RX64M
Package Tray
Core Processor RXv2
Core Size 32-Bit Single-Core
Speed 120MHz
Connectivity CANbus, EBI/EMI, Ethernet, I²C, LINbus, MMC/SD, SCI, SPI, SSI, UART/USART, USB
Peripherals DMA, LVD, POR, PWM, WDT
Number of I/O 127
Program Memory Size 2.5MB (2.5M x 8)
Program Memory Type FLASH
EEPROM Size 64K x 8
RAM Size 512K x 8
Supply Voltage - Operating 2.7V ~ 3.6V
Data Converters A/D 8x12b, 21x12b; D/A 2x12b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 176-LQFP
Supplier Device Package 176-LFQFP (24x24)
Base Product Number R5F564
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
Other Names 559-R5F564MGDDFC#11
Standard Package 320
Win Source Part Number 1006507-R5F564MGDDFC#11
Ultra Librarian 3D Model Ultra Librarian R5F564MGDDFC#11 CAD Model

Description

The R5F564MGDDFC#11 is a microcontroller designed for use in embedded systems.

  • Series: RX64M
  • Core Processor: RXv2
  • Speed: 120MHz
  • Package: Tray
  • Standard Package Size: 320
  • Mounting: SMD (SMT)
  • Peripherals: DMA, LVD, POR, PWM, WDT
