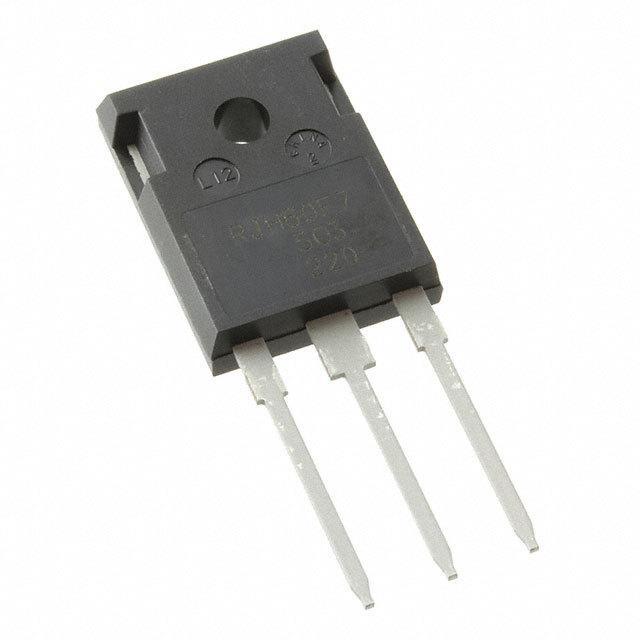

RJH60F5BDPQ-A0#T0 Renesas Electronics America
Same model may have multiple batches, images only for reference.

RJH60F5BDPQ-A0#T0

Part No RJH60F5BDPQ-A0#T0
Manufacturer Renesas Electronics America
Catalog IGBTs - Single
Description IGBT 600V 80A 260.4W TO-247A / Trans IGBT Chip N-CH 600V 80A 260400mW 3-Pin(3+Tab) TO-247A Tube
Datasheet
RJH60F5BDPQ-A0#T0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Renesas Electronics America
Packaging Tube
IGBT Type Trench
Voltage - Collector Emitter Breakdown (Maximum) 600V
Current - Collector (Ic) (Maximum) 80A
Vce(on) (Maximum) @ Vge, Ic 1.8V @ 15V, 40A
Power - Max 260.4W
Input Type Standard
Td (on/off) @ 25°C 53ns/95ns
Test Condition 400V, 30A, 5 Ohm, 15V
Reverse Recovery Time (trr) 25ns
Operating Temperature Range 150°C (TJ)
Mounting Style Through Hole
Package TO-247-3
Manufacturer Package TO-247A
Win Source Part Number 793209-RJH60F5BDPQ-A0#T0
Popularity Medium
Supply and Demand Status Limited
Family Name RJH60F5BDPQ-A0
Introduction Date February 16, 2012
ECCN EAR99
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian RJH60F5BDPQ-A0#T0 CAD Model

Description

The RJH60F5BDPQ-A0#T0 from Renesas Electronics America is a Trench IGBT type with a maximum power of 260.4W.

  • Package: TO-247-3
  • Mounting Style: through-hole
  • Reverse Recovery Time (trr): 25ns
  • Current Collector (Ic) (Maximum): 80A
  • Voltage Collector-Emitter Breakdown (Maximum): 600V
  • Vce(on) (maximum) @ Vge, Ic: 1.8V @ 15V, 40A
  • ECCN: EAR99
  • Estimated EOL Date: 2022
  • Category: discrete semiconductor products
