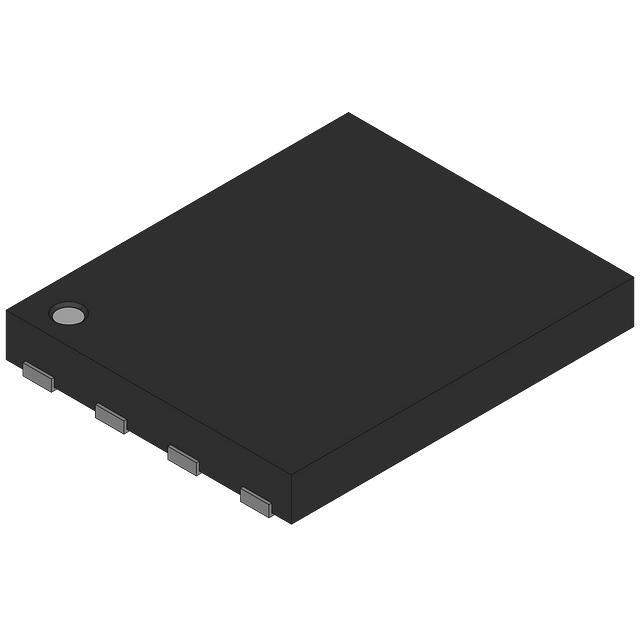

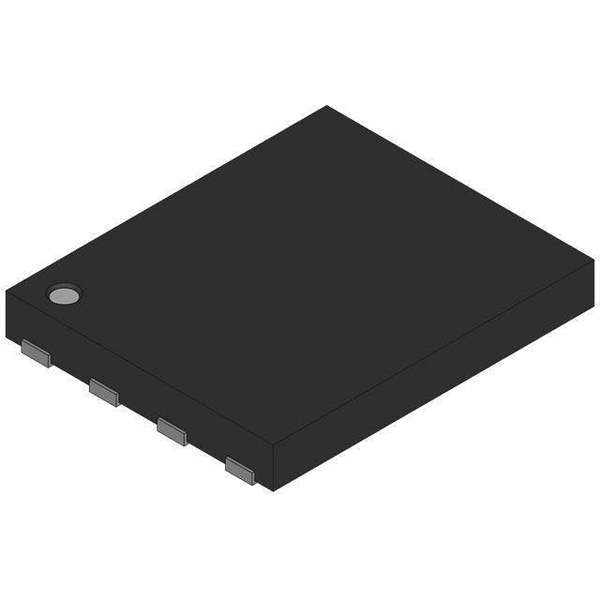

The RJK0392DPA is an N-channel MOSFET produced by Renesas Electronics, designed for switching applications within electronic circuits. It is frequently employed in DC-DC converters, load switches, and power management systems.

Applications:

• DC-DC converters in various electronic devices.
• Load switching in power distribution and management.
• Power supplies for diverse electronic equipment.
• Motor control circuits.

Features:

• Low On-Resistance (RDS(on)): Minimizes conduction losses, enhancing efficiency. RDS(on) is typically specified at various gate-source voltages (VGS).
• High-Speed Switching: Facilitates rapid switching, thereby reducing switching losses at higher frequencies.
• Logic Level Gate Drive: Enables direct driving from logic-level signals (e.g., 5V or 3.3V), simplifying drive circuitry.
• Surface Mount Package: DPAK (TO-252) package designed for efficient heat dissipation and automated assembly.
• Lead-Free Construction: Compliant with environmental regulations.

Benefits:

• Improved Power Efficiency: Low RDS(on) and fast switching speeds result in increased power efficiency.
• Reduced Heat Generation: Lower RDS(on) minimizes power dissipation as heat, enhancing reliability.
• Simplified Circuit Design: Logic-level gate drive streamlines the gate drive circuit.
• Compact Footprint: Surface-mount package allows for dense and efficient circuit layouts.
• Enhanced Reliability: Renesas MOSFETs are known for robust design and performance.

Additional Details:

Drain-Source Voltage (VDS), Gate-Source Voltage (VGS), and Continuous Drain Current (ID) are crucial parameters specified in the datasheet, which must be consulted for proper application. The DPAK package is intended for surface mounting and efficient heat dissipation. Derating curves and thermal specifications should be carefully reviewed in the datasheet.
