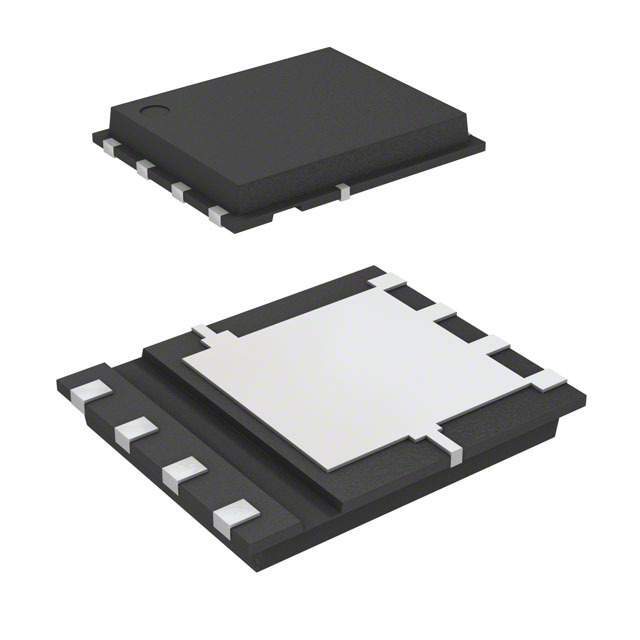

Same model may have multiple batches, images only for reference.
RJK1555DPA-00#J0 Renesas Electronics America
Same model may have multiple batches, images only for reference.

RJK1555DPA-00#J0

Part No RJK1555DPA-00#J0
Manufacturer Renesas Electronics America
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 150V W-PAK / Trans MOSFET N-CH Si 150V 25A Automotive 8-Pin WPAK EP T/R
Datasheet
RJK1555DPA-00#J0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Renesas Electronics America
Packaging Reel package
Channel Type Type N
Technology MOSFET
Drain Source Voltage 150V
Current - Continuous Drain (Id) @ 25°C 25A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 10V
Gate Charge (Qg) (Maximum) @ Vgs 38nC @ 10V
Input Capacitance (Ciss) (Maximum) @ Vds 2400pF @ 25V
Vgs (Maximum) ±30V
Power Dissipation (Maximum) 30W (Tc)
Rds On (Maximum) @ Id, Vgs 48 mOhm @ 12.5A, 10V
Operating Temperature Range 150°C (TJ)
Mounting SMD
Manufacturer Package 8-WPAK
Package 8-PowerWDFN
Win Source Part Number 793223-RJK1555DPA-00#J0
Popularity Medium
Supply and Demand Status Limited
Family Name RJK1555DPA-00
ECCN EAR99
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian RJK1555DPA-00#J0 CAD Model

Description

The RJK1555DPA-00#J0 from Renesas Electronics America is an N-channel MOSFET transistor with a drain-source voltage of 150V.

  • Current - Continuous Drain (Id) @ 25°C: 25A (Ta)
  • Gate Charge (Qg) (maximum) @ Vgs: 38nC @ 10V
  • Input Capacitance (Ciss) (maximum) @ Vds: 2400pF @ 25V
  • Power Dissipation (maximum): 30W (Tc)
  • Rds On (Maximum) @ Id, Vgs: 48 mOhm @ 12.5A, 10V
  • Technology: MOSFET
  • Channel Type: N
  • Packaging: 8-PowerWDFN
  • Family Name: RJK1555DPA-00
