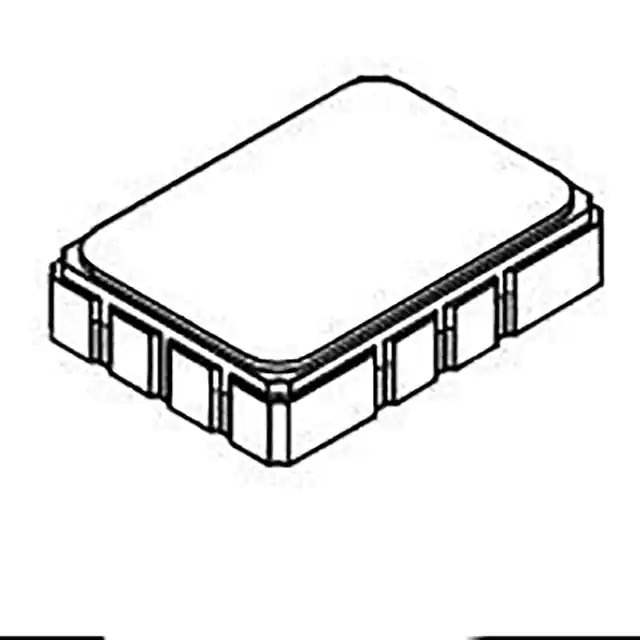

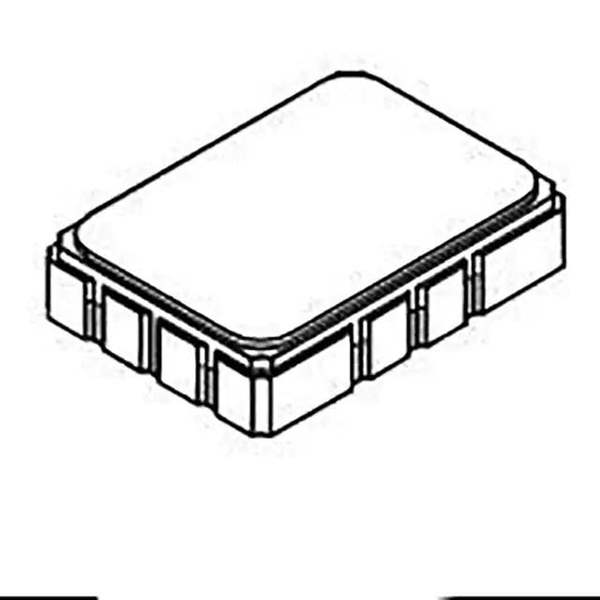

SF2073B Real Image
Same model may have multiple batches, images only for reference.

SF2073B

Part No SF2073B
Manufacturer RF Monolithics, Inc
Catalog SAW Filters
Description FILTER, SAW, 456 MHZ, 10SMD / 456MHz Frequency IF, WiMax RF SAW Filter (Surface Acoustic Wave) 12.5dB Bandwidth 10-SMD, No Lead
Datasheet
SF2073B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - SAW Filters
Mfr RF Monolithics, Inc
Package Tape & Reel (TR)Tape & Reel (TR)Bag
Product Status Active
Frequency - Center 456MHz
Insertion Loss 12.5dB
Ratings AEC-Q200
Applications IF, WiMax
Mounting Type Surface Mount
Package / Case 10-SMD, No Lead
Height (Max) 0.079" (2.00mm)
Size / Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Base Product Number SF2073
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0060
Win Source Part Number 894169-SF2073B
Ultra Librarian 3D Model Ultra Librarian SF2073B CAD Model

Description

The 894169-SF2073B is a SAW filter designed for use in IF and WiMax applications.

  • Application: IF and WiMax applications
  • Center Frequency: 456MHz
  • Insertion Loss: 12.5dB
  • Mounting: Surface mountable
  • Package: 10-SMD package
  • Height: 0.079 inches
  • Packaging: Tape and reel
  • Rating: AEC-Q200 rated
  • Standard Package: 2,000 pieces
  • Manufacturer: RF Monolithics, Inc.
  • Status: Active product
