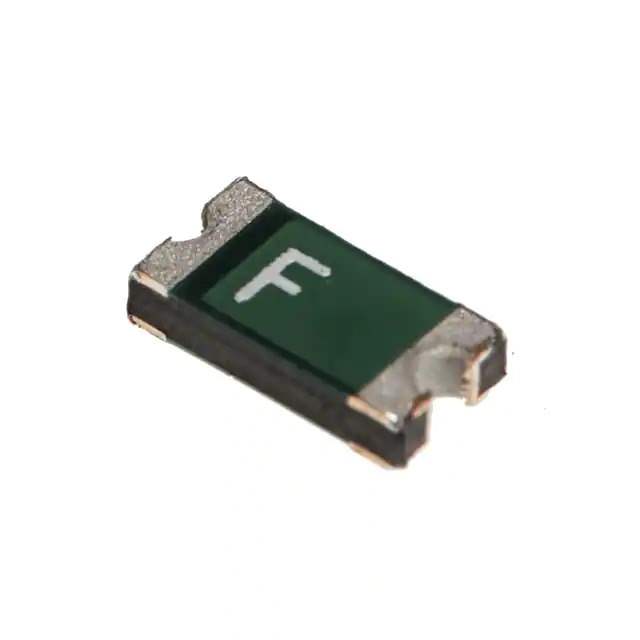

Same model may have multiple batches, images only for reference.

FSMD200-1206R

Name: FSMD200-1206R
Brand: RFE/Fuzetec
SKU: 872330
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	FSMD200-1206R
Manufacturer	RFE/Fuzetec
Catalog	PTC Resettable Fuses
Description	RESETTABLE FUSE - SMD, 1206 SIZE / PTC Resettable Fuse 6V 2 A Ih Surface Mount 1206 (3216 Metric), Concave
Datasheet	FSMD200-1206R Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - PTC Resettable Fuses
Mfr	RFE/Fuzetec
Series	FSMD1206
Package	Tape & Reel
Product Status	Active
Voltage - Max	6V
Current - Hold (Ih) (Max)	2 A
Current - Trip (It)	3.5 A
Current - Max	100 A
Time to Trip	1.5 s
Resistance - Initial (Ri) (Min)	18 mOhms
Resistance - Post Trip (R1) (Max)	80 mOhms
Temperature Range - Operating	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	1206 (3216 Metric), Concave
Size / Dimension	0.128" L x 0.065" W (3.25mm x 1.65mm)
Thickness (Max)	0.063" (1.60mm)
Approval Agency	cUL, TUV, UL
Standard Package	50 pcs
MSL Level	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.40.8070
Win Source Part Number	872330-FSMD200-1206R
Ultra Librarian 3D Model	Ultra Librarian FSMD200-1206R CAD Model

Alternative Products

Description

The FSMD200-1206R is a PTC resettable fuse designed for circuit protection.

Manufacturer: RFE/Fuzetec
Maximum Voltage: 6V
Maximum Current: 100 A
Time to Trip: 1.5 s
Package Size: 1206 (3216 Metric), concave
Temperature Range: -40°C to 85°C
Resistance (Initial): 18 mOhms
Resistance (Maximum after tripping): 80 mOhms
Approvals: cUL, TUV, and UL
