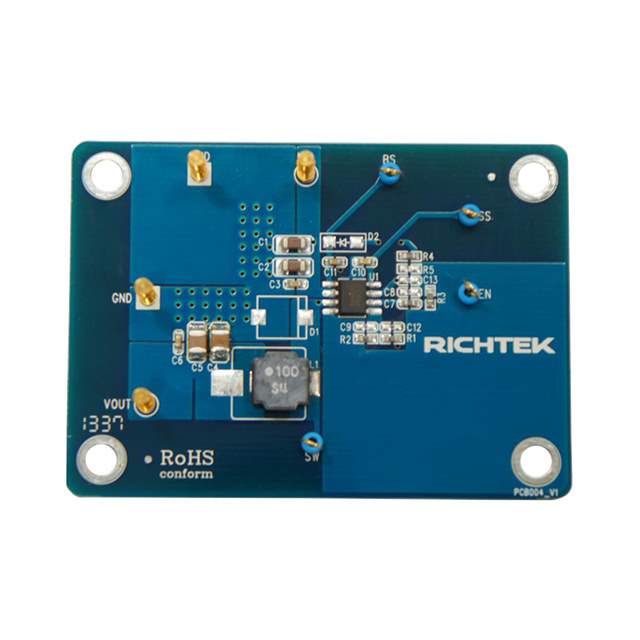

EVB_RT8296AHZSP Real Image
Same model may have multiple batches, images only for reference.

EVB_RT8296AHZSP

Part No EVB_RT8296AHZSP
Manufacturer Richtek USA Inc.
Catalog Evaluation Boards - DC/DC & AC/DC (Off - Line)SMPS
Description EVAL MODULE FOR RT8296AHZSP
Datasheet
EVB_RT8296AHZSP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Development Boards, Kits, Programmers
Manufacturer Richtek USA Inc.
Main Purpose DC/DC, Step Down
Outputs and Type 1, Non-Isolated
Voltage - Output 3.3V
Output Current 3A
Voltage - Input 4.5 V ~ 23 V
Regulator Topology Buck
Frequency - Switching 340kHz
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part RT8296A
Win Source Part Number 793425-EVB_RT8296AHZSP
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian EVB_RT8296AHZSP CAD Model

Description

The Richtek USA Inc. EVB_RT8296AHZSP is a development board for the RT8296A buck regulator.

  • Voltage Output: 3.3V
  • Voltage Input: 4.5V to 23V
  • Switching Frequency: 340kHz
  • Output Current: 3A
  • Output Type: Non-isolated
  • Application: DC/DC, step-down
