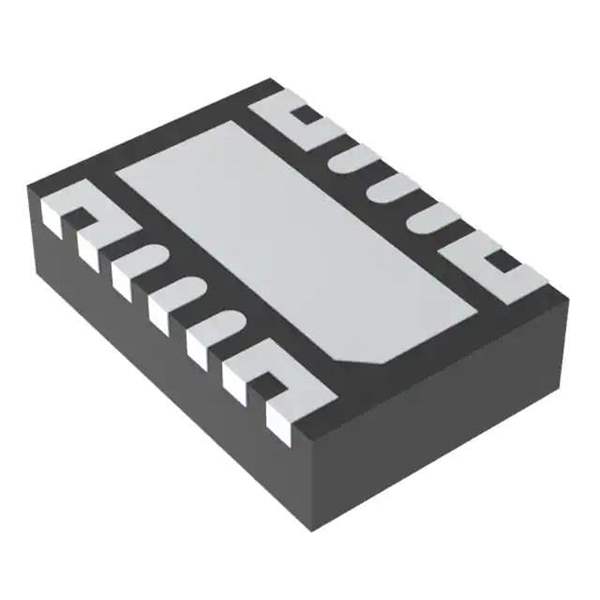

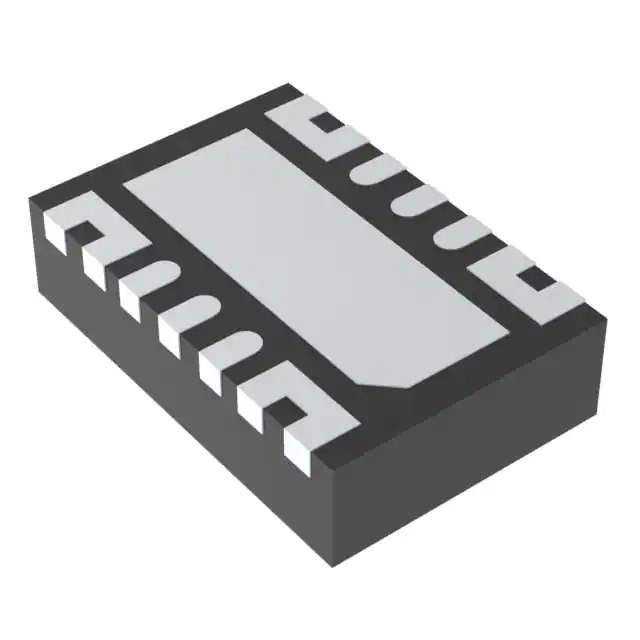

RT9740AGQW Real Image
Same model may have multiple batches, images only for reference.

RT9740AGQW

Part No RT9740AGQW
Manufacturer Richtek USA Inc.
Catalog PMIC - Power Distribution Switches, Load Drivers
Description IC LOAD SWITCH WDFN-14T
Datasheet
RT9740AGQW Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Power Distribution Switches, Load Drivers
Mfr Richtek USA Inc.
Package Tape & Reel
Product Status Discontinued
Switch Type General Purpose
Number of Outputs 2
Output Configuration High Side
Output Type N-Channel
Interface On/Off
Voltage - Load 0.8V ~ 5.5V
Voltage - Supply (Vcc/Vdd) Not Required
Current - Output (Max) 6A
Rds On (Typ) 18mOhm
Input Type Non-Inverting
Features Load Discharge, Slew Rate Controlled
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Supplier Device Package 14-WDFN-TL (3x2)
Package / Case 14-WFDFN Exposed Pad
Base Product Number RT9740
Standard Package 1,500 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 661699-RT9740AGQW
Ultra Librarian 3D Model Ultra Librarian RT9740AGQW CAD Model

Description

The RT9740AGQW is a power distribution switch and load driver from Richtek USA Inc.

  • Device: RT9740AGQW
  • Series: RT9740
  • Manufacturer: Richtek USA Inc.
  • Features: Load Discharge and Slew Rate Controlled
  • Output Configuration: High-Side
  • Maximum Output Current: 6A
  • Operating Voltage Range: 0.8V to 5.5V
  • Mounting Type: Surface Mountable
  • Package: 14-WFDFN exposed pad
  • Product Status: Discontinued
