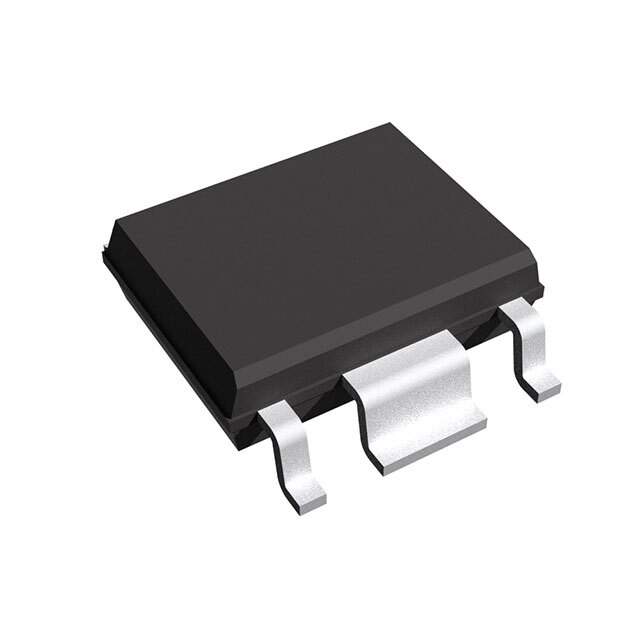

The R1172S131D-E2-F is a voltage regulator IC manufactured by Ricoh. This is a low-dropout (LDO) regulator designed to provide a stable and accurate output voltage even when the input voltage is close to the output voltage. It is typically used in a variety of electronic devices to ensure a consistent power supply for sensitive components.

Applications:

• Mobile phones: Powering various internal circuits.
• Smartphones: Supplying stable voltage to the processor, memory, and display.
• Portable devices: Ensuring consistent power in battery-operated gadgets.
• Wearable technology: Power management in smartwatches and fitness trackers.
• IoT devices: Providing regulated power for sensors and communication modules.

Features:

• Low Dropout Voltage: Operates with minimal difference between input and output voltage for efficient power conversion.
• High Output Voltage Accuracy: Provides a stable and precise output voltage, essential for sensitive electronics.
• Overcurrent Protection: Safeguards the IC and connected components from damage due to excessive current draw.
• Thermal Shutdown Protection: Prevents overheating and potential damage by shutting down the IC when temperature exceeds a safe limit.
• Small Package Size: Allows for compact designs, making it suitable for space-constrained applications.
• Low Quiescent Current: Minimizes power consumption when the regulator is in standby mode, extending battery life.

Benefits:

• Stable Power Supply: Ensures reliable operation of electronic devices by providing a consistent voltage.
• Extended Battery Life: Low quiescent current and efficient power conversion contribute to longer battery life in portable devices.
• Protection against Damage: Overcurrent and thermal shutdown features protect the IC and connected components from potential damage.
• Compact Design: Small package size allows for integration into space-constrained applications.
• Improved System Reliability: Stable and protected power supply enhances the overall reliability of the electronic system.

Additional Details:

The R1172S131D-E2-F typically comes in a small package such as DFN or SOT. The specific output voltage is 1.3V. The input voltage range is typically between 1.4V and 6.0V. The operating temperature range is typically -40°C to +85°C. It's crucial to refer to the manufacturer's datasheet for precise electrical characteristics, application notes, and recommended operating conditions when designing with this part. The datasheet will provide information about the maximum input voltage, output current capability, and thermal resistance, which are essential for proper circuit design and ensuring the long-term reliability of the device.
