The Ricoh RP150K011A is a low-dropout (LDO) regulator designed for various power management applications. It provides a stable output voltage with low quiescent current, making it suitable for battery-powered devices and applications where energy efficiency is critical. Its compact size and minimal external components requirement allow for space-saving designs.

Applications:

• Mobile phones and smartphones
• Wearable devices
• IoT (Internet of Things) devices
• Portable media players
• Wireless communication modules
• Battery-powered equipment

Features:

• Low dropout voltage: Ensures stable output even with a small difference between input and output voltages.
• Low quiescent current: Minimizes power consumption in standby mode, extending battery life.
• Overcurrent protection: Protects the regulator and the load from damage due to excessive current draw.
• Thermal shutdown protection: Prevents the regulator from overheating under high load conditions.
• Small package size: Enables compact and space-saving designs.
• Stable with ceramic capacitors: Allows the use of small and inexpensive ceramic capacitors for stable operation.

Benefits:

• Extended battery life: The low quiescent current minimizes power consumption, resulting in longer battery life for portable devices.
• Stable output voltage: The low dropout voltage and stable operation ensure a consistent power supply to the load.
• Reliable operation: The overcurrent and thermal shutdown protections prevent damage to the regulator and the load, ensuring reliable operation.
• Simplified design: The small package size and minimal external component requirement simplify circuit design and reduce board space.
• Cost-effective solution: The ability to use ceramic capacitors reduces the overall cost of the power management solution.

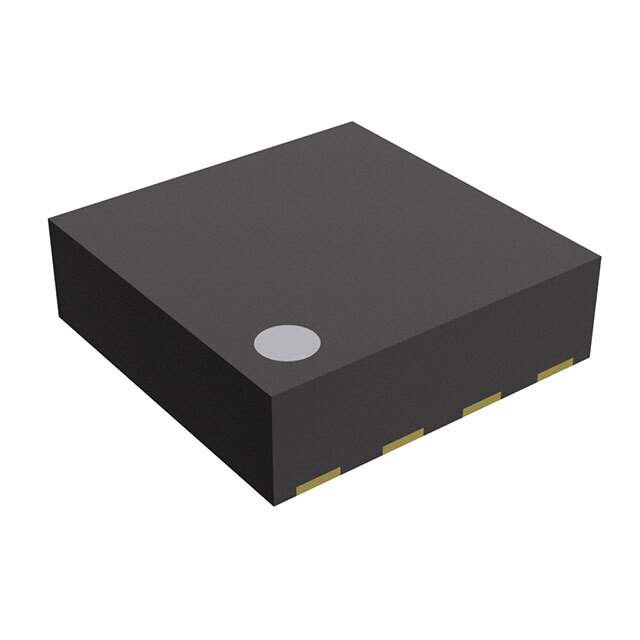

The RP150K011A is generally available in a small package, such as DFN or SOT, and requires minimal external components for operation. It's crucial to consult the datasheet for specific electrical characteristics, thermal considerations, and recommended operating conditions. Key parameters to consider include input voltage range, output voltage accuracy, dropout voltage at different load currents, and thermal resistance.
