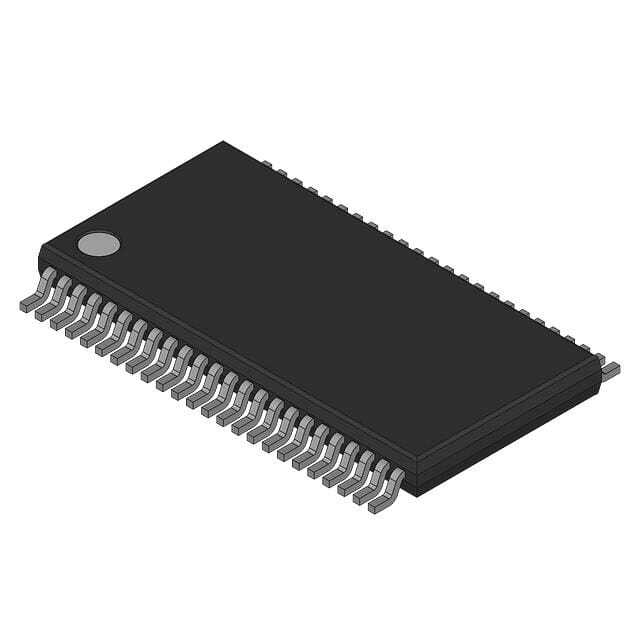

Same model may have multiple batches, images only for reference.
74LVTH16240MTDX
Same model may have multiple batches, images only for reference.

74LVTH16240MTDX

Part No 74LVTH16240MTDX
Manufacturer Rochester Electronics
Catalog Logic - Buffers, Drivers, Receivers, Transceivers
Description IC BUFFER INVERT 3.6V 48TSSOP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Features Buffer, Inverting 4 Element 4 Bit per Element 3-State Output 48-TSSOP
Manufacturer Fairchild/ON Semiconductor
Series 74LVTH
Package Bulk
Part Status Obsolete
Operating Temperature Range -40°C ~ 85°C (TA)
Mounting Surface Mount
Package 48-TFSOP (0.240", 6.10mm Width)
Case / Package 48-TSSOP
ECCN EAR99
HTSUS 8542.39.0001
Quantity per package 1000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 858065-74LVTH16240MTDX
Ultra Librarian 3D Model Ultra Librarian 74LVTH16240MTDX CAD Model

Description

The Fairchild/ON Semiconductor 74LVTH16240MTDX is a buffer inverting 4 element 4 bit per element 3-state output integrated circuit (IC).

  • Series: 74LVTH series
  • Package: 48-TSSOP
  • Operating Temperature Range: -40°C to 85°C (TA)
  • Output: 3-state output
  • Status: Obsolete
  • Supply and Demand Status: Limited
  • Package Type: Bulk
  • Quantity per Package: 1000
  • HTSUS Code: 8542.39.0001
  • ECCN: EAR99
