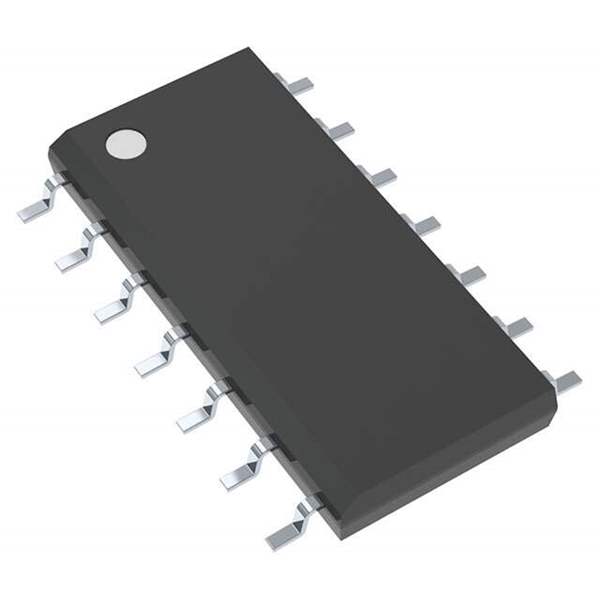

MC74ACT05DR2

Part No MC74ACT05DR2
Manufacturer Rochester Electronics
Catalog Logic - Gates and Inverters
Description IC INVERTER OD 6CH 1-INP 14SOIC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Features Inverter IC 6 Channel Open Drain 14-SOIC
Manufacturer ON Semiconductor
Series 74ACT
Package Bulk
Part Status Obsolete
Operating Temperature Range -40°C ~ 85°C
Mounting Surface Mount
Package 14-SOIC (0.154", 3.90mm Width)
Case / Package 14-SOIC
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number 2156-MC74ACT05DR2, 2156-MC74ACT05DR2-ONTR-ND
Quantity per package 2500
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 883580-MC74ACT05DR2
Ultra Librarian 3D Model Ultra Librarian MC74ACT05DR2 CAD Model

Description

The MC74ACT05DR2 is a hex inverter with open-drain outputs, part of the ACT (Advanced CMOS Technology) logic family, and is manufactured by Rochester Electronics. This device is designed for various digital logic applications where an inverted output and the ability to wire-AND multiple outputs together are required.

Applications

  • Logic Level Inversion: Used for inverting digital signals in digital circuits.
  • Wired-AND Logic: Employed in applications requiring wired-AND or wired-OR functionality (with appropriate pull-up resistors).
  • Interface Circuits: Used to interface between different logic families or voltage levels.
  • Digital Signal Processing: Applied in digital signal processing circuits for signal manipulation.

Features

  • Hex Inverter: Contains six independent inverters in a single package.
  • Open-Drain Outputs: Outputs are open-drain, allowing for wired-AND configurations.
  • High Speed: Offers high-speed operation with typical propagation delays in the nanosecond range.
  • Wide Operating Voltage: Operates over a broad voltage range, typically from 4.5V to 5.5V.
  • CMOS Technology: Utilizes CMOS technology for low power consumption.
  • TTL Compatibility: Compatible with TTL logic levels.

Benefits

  • Flexible Logic Design: Open-drain outputs provide flexibility in logic design.
  • High Performance: Enables high-speed operation in digital circuits.
  • Low Power Consumption: Reduces power requirements in battery-powered devices.
  • Easy Integration: Compatible with standard TTL logic levels.
  • Versatile Applications: Suitable for a wide range of digital logic applications.

Additional Details

The MC74ACT05DR2 is typically available in a surface-mount SOIC (Small Outline Integrated Circuit) package. Proper pull-up resistors are required on the open-drain outputs to define the high logic level. Detailed electrical characteristics, timing diagrams, and package dimensions are available in the product datasheet. It is essential to consult the datasheet for specific application requirements and design considerations.
