Products specifications

Categories Circuit Protection
Features 87.1V Clamp 5.9A Ipp Tvs Diode Through Hole DO-204AC (DO-15)
Manufacturer Fairchild/ON Semiconductor
Series SA
Package Bulk
Part Status Obsolete
Operating Temperature Range -55°C ~ 175°C (TJ)
Mounting Through Hole
Package DO-204AC, DO-15, Axial
Case / Package DO-204AC (DO-15)
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 2156-SA54CA, 2156-SA54CA-FSTR-ND
Quantity per package 4000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 932977-SA54CA
Ultra Librarian 3D Model Ultra Librarian SA54CA CAD Model

Description

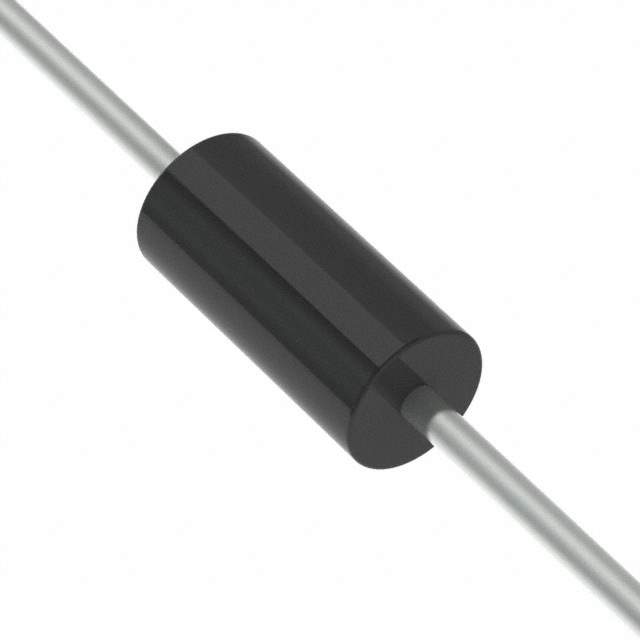

The SA54CA TVS diode from Fairchild/ON Semiconductor is a circuit protection electronic component that is designed to provide reliable performance.

  • Package: It has a DO-204AC (DO-15) package/case and is mounted through a hole.
  • Specifications: The diode has a clamp voltage of 87.1V and an Ipp of 5.9A.
  • Temperature Range: It is rated for use in temperatures ranging from -55°C to 175°C (TJ).
  • Package Quantity: The quantity per package is 4000.
