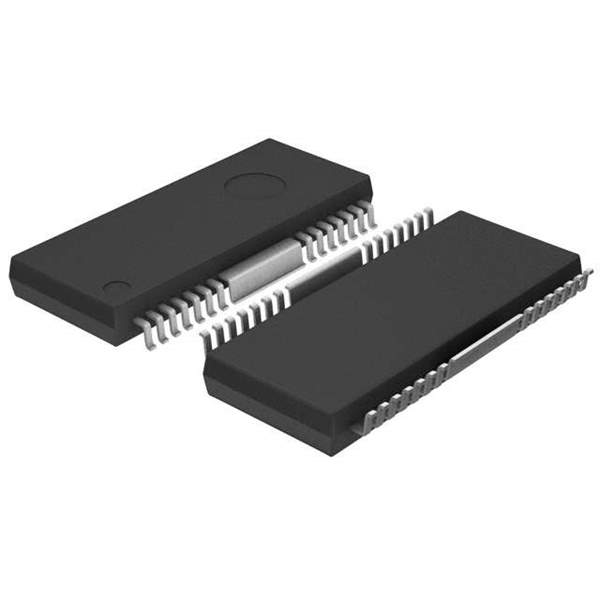

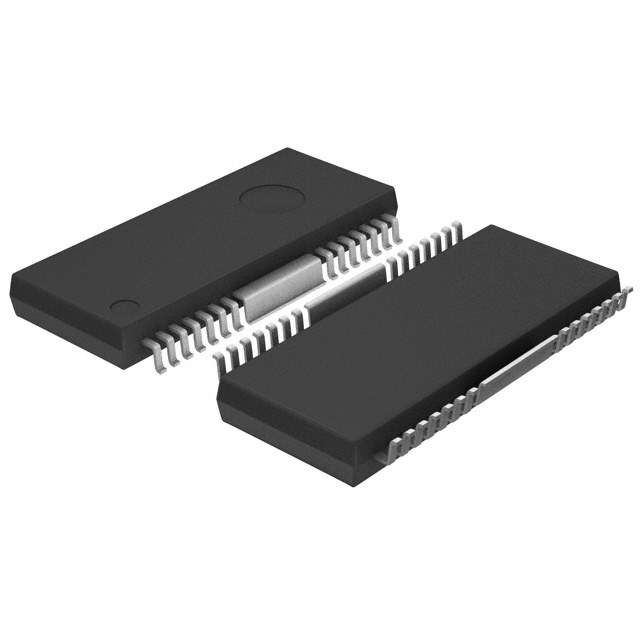

The BA5984FP is a bridge driver IC manufactured by Rohm Semiconductor. It is designed to drive inductive loads such as motors and solenoids. This IC integrates multiple functions, including input logic, a charge pump, and output drive circuitry, into a single package, simplifying circuit design and reducing component count.

Applications

• Motor drivers in printers
• Solenoid drivers in automotive applications (e.g., door locks)
• General-purpose inductive load drivers
• Consumer electronics (e.g., robotics, toys)

Features

• Built-in Charge Pump: Enables high-side switching without external components.
• Overcurrent Protection: Protects the IC and connected loads from damage due to excessive current draw.
• Thermal Shutdown: Shuts down the IC if the junction temperature exceeds a safe level, preventing thermal damage.
• Brake Function: Provides a braking function for motor control, allowing for rapid deceleration.
• Low Saturation Voltage: Minimizes power dissipation and improves efficiency.
• Input Logic: Allows for easy interfacing with microcontrollers and other digital circuits.
• Compact Package: Facilitates space-saving designs.

Benefits

• Simplified Design: Integration of multiple functions reduces external component count and simplifies circuit design.
• Enhanced Protection: Overcurrent and thermal shutdown features protect the IC and connected loads from damage.
• Improved Efficiency: Low saturation voltage minimizes power dissipation and improves energy efficiency.
• Reliable Performance: Robust design and protection features ensure reliable operation in a variety of applications.
• Easy Interfacing: Input logic allows for easy interfacing with microcontrollers and other digital circuits.
• Space Saving: The compact package allows for use in space-constrained applications.

Additional Details

The BA5984FP typically operates from a single power supply voltage (e.g., 5V or 12V). The output current capability varies depending on the specific device configuration and operating conditions. It is important to consult the device datasheet for detailed specifications, including voltage ratings, current limits, and thermal characteristics. The package type is typically an HZIP package or similar, designed for efficient heat dissipation. Detailed specifications include output voltage, output current, control logic voltage, and operating temperature range. This driver is suitable for efficiently controlling small DC motors or solenoids in various electronic devices.
