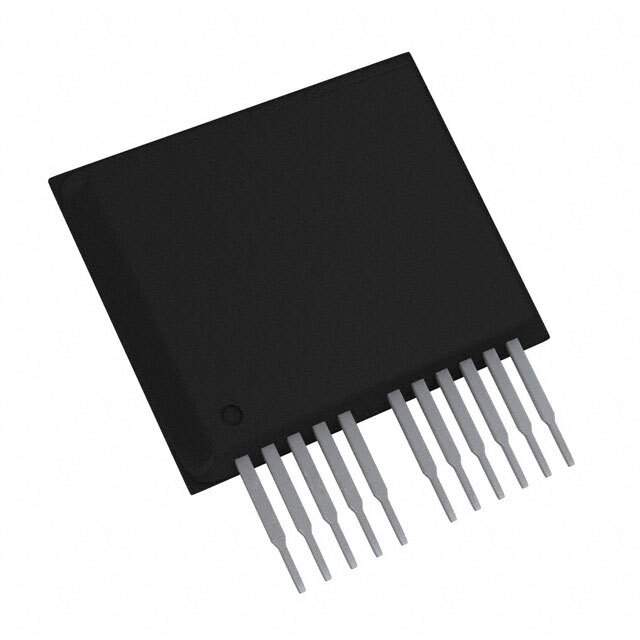

ON Semiconductor STK681-200-E Motor Driver Module

The STK681-200-E from ON Semiconductor is a high-quality, integrated unipolar stepping motor driver module designed for driving a two-phase stepping motor in a bipolar manner. This advanced module is a perfect blend of robustness and efficiency, making it an ideal choice for a wide range of applications including office automation machines, factory automation systems, and home appliances.

The module is built with a thick-film hybrid IC technology, providing a compact and reliable motor driver solution. It operates on a supply voltage range of 10V to 29V, which allows for flexible integration into various circuit designs. The STK681-200-E is capable of delivering a maximum output current of 2A, ensuring the ability to drive a wide range of stepping motors with different power requirements.

One of the standout features of the STK681-200-E is its built-in micro-stepping controller, which significantly improves the motor's running smoothness by allowing for finer step resolution. This feature is particularly beneficial in applications where precision and control are paramount. Additionally, the module includes various protection features such as thermal shutdown, overcurrent protection, and under-voltage lockout, which help prevent damage to the motor and the driver module under adverse conditions.

The STK681-200-E is also designed with user convenience in mind. It includes a simple step and direction control interface, making it easy to interface with microcontrollers and other control units. Its compact package ensures that it takes up minimal space on the PCB, which is crucial for space-constrained applications.

In summary, the ON Semiconductor STK681-200-E stepping motor driver module combines performance, precision, and protection features to offer a reliable and efficient solution for controlling stepping motors. Its versatility and ease of use make it a top choice for designers and engineers looking to enhance their motor control systems.
