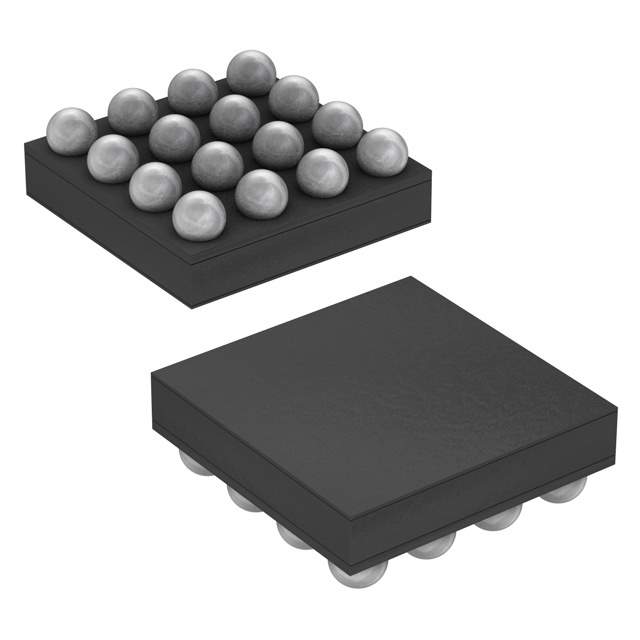

AP1014AEC Real Image
Same model may have multiple batches, images only for reference.

AP1014AEC

Part No AP1014AEC
Manufacturer Asahi Kasei Microsystems
Catalog PMIC - Full, Half - Bridge Drivers
Description IC MOTOR DRIVER 7V 16WCSP  /  Half Bridge (4) Driver General Purpose Power MOSFET 16-WLCSP (1.96x1.96)
Datasheet
AP1014AEC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Full, Half-Bridge Drivers
Mfr Asahi Kasei Microdevices/AKM
Package Tape & Reel
Product Status Not For New Designs
Output Configuration Half Bridge (4)
Applications General Purpose
Interface Logic
Load Type Inductive
Technology Power MOSFET
Rds On (Typ) 350mOhm LS + HS
Current - Output / Channel 1.1A
Current - Peak Output 2A
Voltage - Supply 2.7V ~ 5.5V
Voltage - Load 2V ~ 7V
Temperature Range - Operating -30°C ~ 150°C (TJ)
Fault Protection Over Temperature, UVLO
Mounting SMD (SMT)
Package / Case 16-UFBGA, WLCSP
Supplier Device Package 16-WLCSP (1.96x1.96)
Base Product Number AP1014
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Other Names AP1014AECTR,AP1014AEC-L,AP1014AECCT,AP1014AECDKR,AP1014AEC-ND
Standard Package 5,000
Win Source Part Number 1145737-AP1014AEC
Ultra Librarian 3D Model Ultra Librarian AP1014AEC CAD Model

Description

The AP1014AEC is a half-bridge driver IC designed for use in general-purpose applications.

  • Interface: Logic
  • Protection: Over-Temperature and UVLO
  • Output Configuration: Half-Bridge with four channels
  • Technology: Power MOSFET
  • Current Output per Channel: 1.1A
  • Peak Output Current: 2A
  • Load Type: Inductive
  • Voltage Load Range: 2V to 7V
  • Package/Case: 16-UFBGA, WLCSP
  • Operating Temperature: -30°C to 150°C (TJ)
