Same model may have multiple batches, images only for reference.

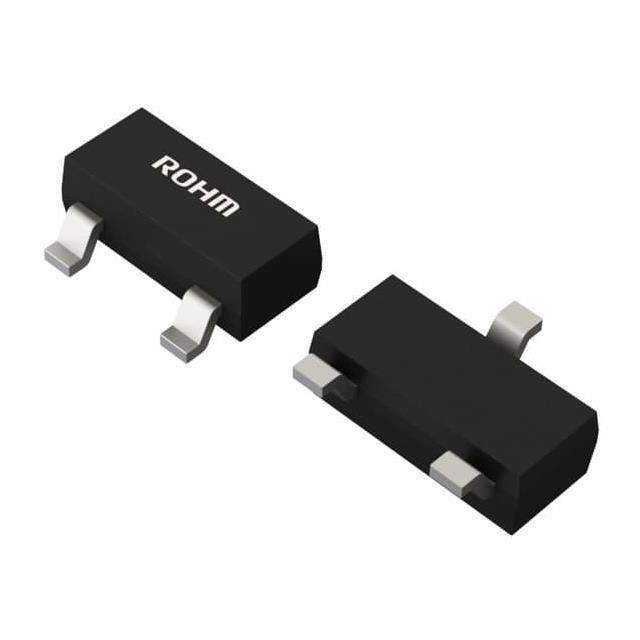

BCX70KT116 Real Image
Same model may have multiple batches, images only for reference.

BCX70KT116

Part No BCX70KT116
Manufacturer Rohm Semiconductor
Catalog Transistors (BJT) - Single
Description TRANS NPN 45V 0.2A SST3
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Not For New Designs
Transistor Polarity NPN
Maximum Current Collector 200mA
VCEO Maximum Collector-Emitter Breakdown Voltage 45V
Max Vce (sat) 550mV @ 1.25mA, 50mA
Collector Cut-off Current(Max) 100nA
Typical Gain (hFE) (Min) 250 @ 2mA, 5V
Maximum Power Dissipation 350mW
Frequency - Transition 125MHz
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Case / Package SST3
Win Source Part Number 1022824-BCX70KT116
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BCX70KT116 CAD Model

Description

The Rohm Semiconductor BCX70KT116 is an NPN transistor with a maximum collector current of 200mA.

  • Collector-Emitter Breakdown Voltage: 45V
  • Maximum Collector-Emitter Saturation Voltage: 550mV @ 1.25mA, 50mA
  • Mounting: SMT
  • Package: SST3 case
  • Typical Gain (hFE): 250 @ 2mA, 5V
  • Maximum Power Dissipation: 350mW
  • Operating Temperature Range: 150°C (TJ)
  • Category: discrete semiconductor product
  • Status: not for new designs
  • Supply and Demand Status: balance
