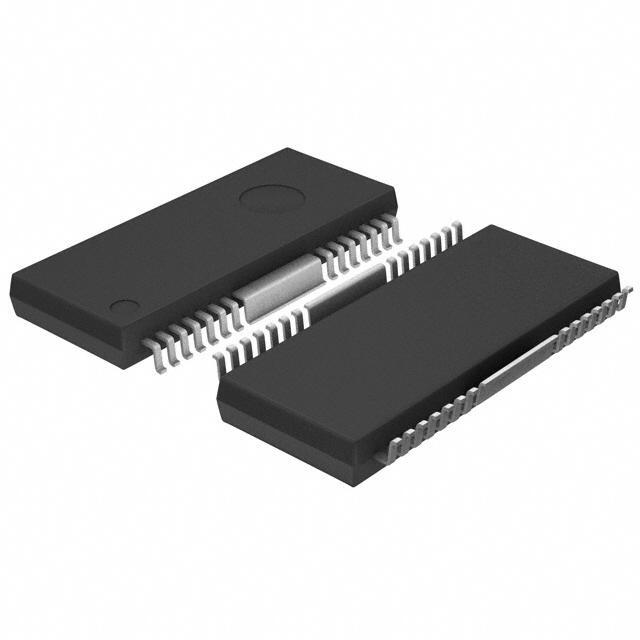

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Rohm Semiconductor
Packaging Reel package
Output Configuration Half Bridge (8)
Applications DC Motors, General Purpose
Interface On/Off
Load Type Inductive
Operating Supply Voltage 4.5 V ~ 14 V
Voltage - Load 4.5 V ~ 14 V
Operating Temperature Range -40°C ~ 85°C (TA)
Fault Protection Over Temperature
Mounting SMD
Package 28-SOP (0.295", 7.50mm Width)
Manufacturer Package 28-HSOP-M
Win Source Part Number 769922-BD8201FM-E2
Popularity Medium
Supply and Demand Status Balance
Family Name BD8201FM
Introduction Date September 27, 2005
Ultra Librarian 3D Model Ultra Librarian BD8201FM-E2 CAD Model

Description

The Rohm Semiconductor BD8201FM-E2 is a medium-popularity electronic component with a balanced supply and demand status.

  • Package: 28-SOP (0.295", 7.50mm Width)
  • Applications: DC Motors and General Purposes
  • Operating Temperature Range: -40°C ~ 85°C (TA)
  • Interface: On/Off
  • Fault Protection: Over-Temperature
  • Output Configuration: Half Bridge (8)
  • Voltage Load: 4.5 V ~ 14 V
