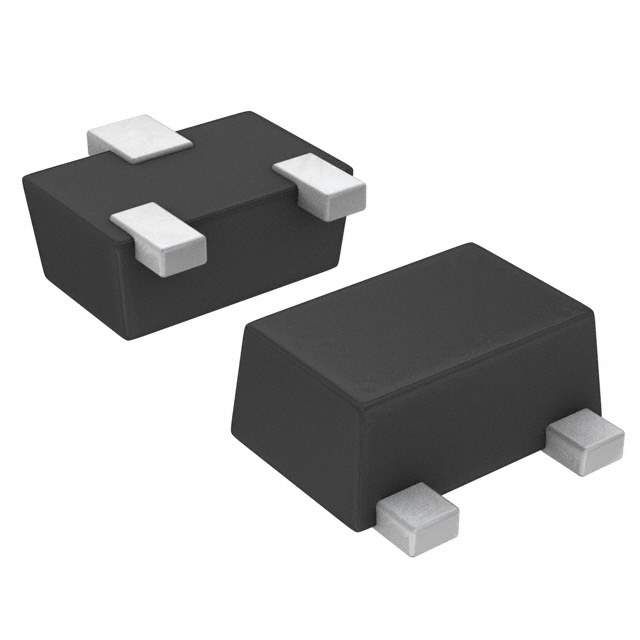

The DTA014EMT2L is a PNP pre-biased transistor manufactured by Rohm Semiconductor. This transistor integrates a bias resistor network, simplifying circuit design and reducing component count.

Applications

• Digital Circuits: Used as an inverter or level shifter in digital logic circuits.
• Switching Circuits: Suitable for switching applications in various electronic devices.
• Load Drivers: Employed as a driver for small loads like LEDs and relays.
• Microcontroller Interfacing: Facilitates interfacing between microcontrollers and other electronic components.
• General Purpose Amplification: Can be used for general-purpose amplification where a pre-biased transistor is beneficial.

Features

• Built-in Bias Resistors: Integrates bias resistors, eliminating the need for external resistors.
• Small Package: Available in a small surface-mount package, saving board space.
• PNP Transistor: PNP polarity for specific circuit configurations.
• Low Saturation Voltage: Offers low saturation voltage for efficient switching.
• Halogen Free: Compliant with halogen-free standards.

Benefits

• Simplified Circuit Design: Integrated resistors simplify circuit design and reduce component count.
• Reduced Board Space: Small package saves valuable board space.
• Lower Component Costs: Eliminates the need for external resistors, reducing component costs.
• Improved Reliability: Reduced component count can improve circuit reliability.
• Environmentally Friendly: Halogen-free construction promotes environmental sustainability.

Additional Details

The DTA014EMT2L has specific resistor values integrated into the base circuit, typically in the range of 1kΩ to 10kΩ. Key specifications include collector-emitter voltage, collector current, and power dissipation, which can be found in the Rohm Semiconductor datasheet. The package type is usually SOT-323 or similar small outline transistor package. The built-in resistors define the input impedance and base current, making it easier to control the transistor's operation. It's suitable for low to medium current switching and amplification applications.
