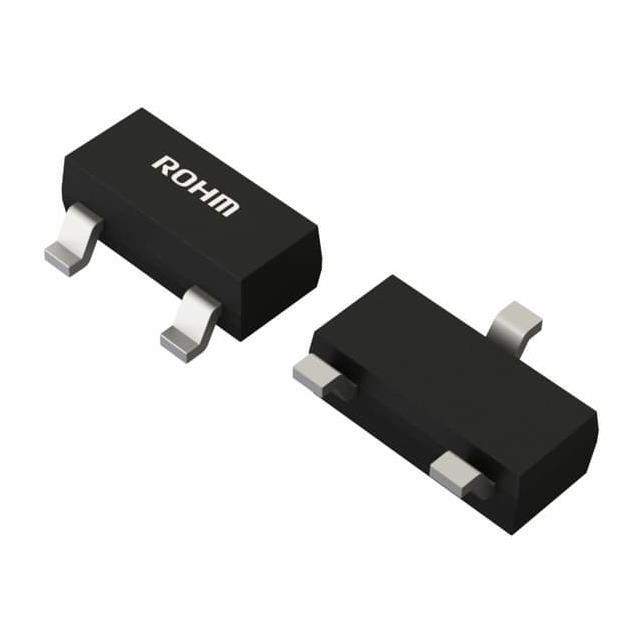

Same model may have multiple batches, images only for reference.

DTA113ZCAT116

Name: DTA113ZCAT116
Brand: Rohm Semiconductor
SKU: 1056425
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	DTA113ZCAT116
Manufacturer	Rohm Semiconductor
Catalog	RF Transistors (BJT)
Description	PNP, SOT-23, R1R2 LEAK ABSORPTIO / Pre-Biased Bipolar Transistor (BJT) PNP - Pre-Biased + Diode 50 V 100 mA 250 MHz 200 mW Surface Mount SST3
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - Bipolar (BJT) - Single, Pre-Biased
Mfr	Rohm Semiconductor
Package	Tape & Reel
Transistor Type	PNP - Pre-Biased + Diode
Current - Collector (Ic) (Max)	100 mA
Voltage - Collector Emitter Breakdown (Max)	50 V
Resistor - Base (R1)	1 kOhms
Resistor - Emitter Base (R2)	10 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce	33 @ 5mA, 5V
Vce Saturation (Max) @ Ib, Ic	300mV @ 500µA, 10mA
Current - Collector Cutoff (Max)	500nA
Frequency - Transition	250 MHz
Power - Max	200 mW
Mounting	SMD (SMT)
Package / Case	TO-236-3, SC-59, SOT-23-3
Supplier Device Package	SST3
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.21.0075
Other Names	846-DTA113ZCAT116DKR,846-DTA113ZCAT116CT,846-DTA113ZCAT116TR
Standard Package	3,000
Win Source Part Number	1056425-DTA113ZCAT116
Ultra Librarian 3D Model	Ultra Librarian DTA113ZCAT116 CAD Model

Alternative Products

Description

The DTA113ZCAT116 is a PNP pre-biased transistor with a diode.

Maximum Power: 200 mW.
Voltage Breakdown: 50V.
Maximum Collector Current: 100 mA.
Frequency Transition: 250 MHz.
Vce Saturation: 300mV @ 500µA, 10mA.
Minimum DC Current Gain (hFE): 33 @ 5mA, 5V.
Package: TO-236-3, SC-59, SOT-23-3.
Supplier Device Package: SST3.
Current Cutoff: 500nA.
Resistor - Base (R1): 1 kOhms.
Resistor - Emitter Base (R2): 10 kOhms.
Packaging: Tape and reel.
Standard Package: 3,000.
