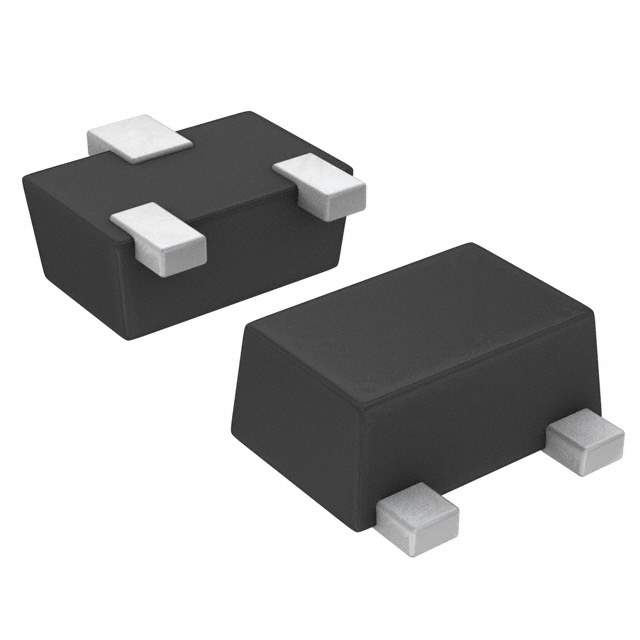

The DTC023JM is an NPN pre-biased transistor manufactured by Rohm Semiconductor. This transistor incorporates integrated bias resistors within its package, simplifying circuit design by eliminating the need for external bias components. This results in a reduced component count and smaller PCB footprint. It's commonly used in applications requiring amplification or switching of small signals.

Applications:

• Digital circuit control
• Inverter circuits
• Driving small loads such as LEDs
• Switching applications
• Amplification circuits

Features:

• Built-in bias resistors (R1 = 2.2 kΩ, R2 = Open)
• Reduces component count and PCB space
• Simplifies circuit design and assembly
• Small SOT-23 package
• RoHS Compliant

Benefits:

• Lower BOM cost
• Reduced PCB size
• Improved circuit reliability
• Simplified assembly processes
• Efficient inventory management

Additional Details:

The DTC023JM features a collector-emitter voltage (VCEO) of 50V and a collector current (IC) of 100mA. The input resistor (R1) is 2.2kΩ, and there is no resistor between the base and emitter. It operates within a temperature range of -55°C to +150°C. The device is packaged in a SOT-23 package. Always refer to the manufacturer's datasheet for detailed specifications and application guidelines.
