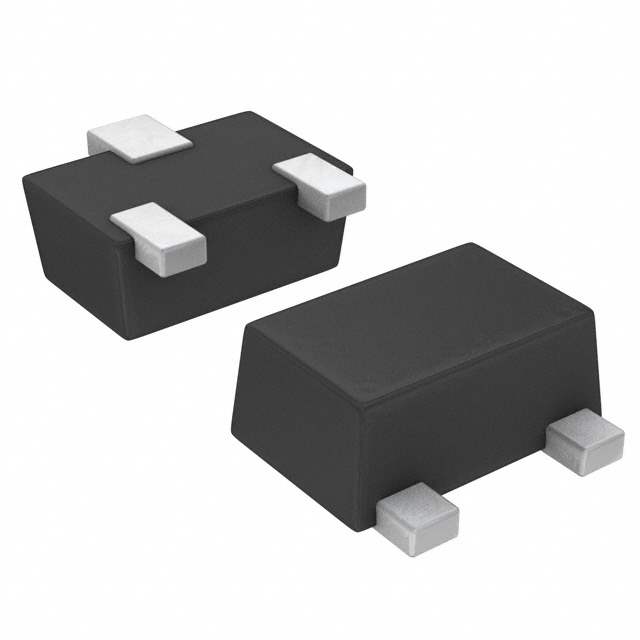

DTC114YMT2L Real Image
Same model may have multiple batches, images only for reference.

DTC114YMT2L

Part No DTC114YMT2L
Manufacturer Rohm Semiconductor
Catalog Transistors (BJT) - Single, Pre - Biased
Description TRANS PREBIAS NPN 150MW VMT3
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Active
Transistor Polarity NPN - Pre-Biased
Maximum Current Collector 70mA
VCEO Maximum Collector-Emitter Breakdown Voltage 50V
Resistor - Base (R1) (Ohms) 10k
Resistor - Emitter Base (R2) (Ohms) 47k
Typical Gain (hFE) (Min) 68 @ 5mA, 5V
Max Vce (sat) 300mV @ 250μA, 5mA
Collector Cut-off Current(Max) 500nA
Frequency - Transition 250MHz
Maximum Power Dissipation 150mW
Mounting SMD (SMT)
Case / Package VMT3
Win Source Part Number 099326-DTC114YMT2L
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DTC114YMT2L CAD Model

Description

Description

The DTC114YMT2L is a digital transistor with integral resistors that simplifies the design of switching and amplification circuits. Its compact and efficient design makes it ideal for advanced electronic applications.

Applications

  • Embedded systems
  • Power supply units
  • Home appliances
  • Industrial automation systems

Features and Benefits

  • Space-efficient SOT-23 package
  • Integrated resistors reduce part count and complexity
  • Low on-state resistance enhances current flow
  • Wide range of operating conditions

Additional Details

The DTC114YMT2L's construction guarantees stable and reliable performance across various environmental conditions, making it a preferred choice for engineers designing compact, high-performance circuits.
