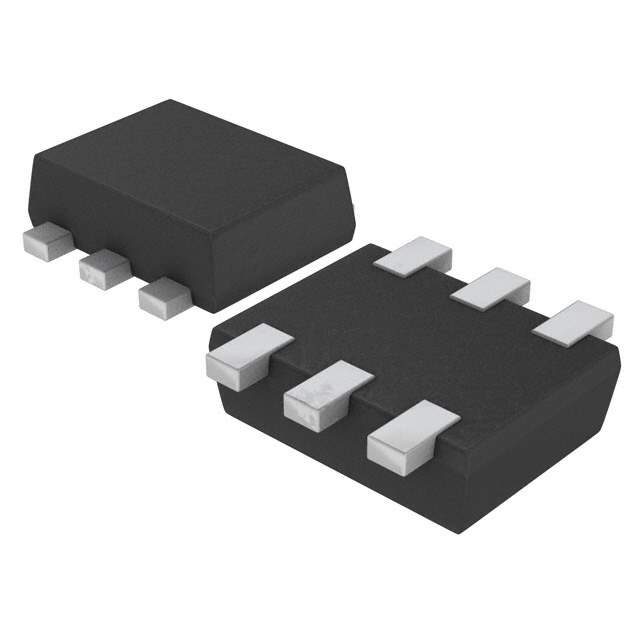

The EMZ2 is a transistor array from Rohm Semiconductor, integrating two PNP transistors within a compact SOT-363 package. This design facilitates space savings and simplifies circuit layout, making it an ideal choice for applications requiring multiple transistors, such as amplifier circuits, switching circuits, and various digital logic implementations.

Applications:

• Amplifier Circuits: Used in signal amplification stages to enhance signal strength while maintaining signal integrity.
• Switching Circuits: Employed as efficient switching elements in electronic circuits, contributing to faster switching speeds.
• Digital Logic Circuits: Integrated into various logic gates and digital circuits where multiple transistors are essential.
• Level Shifters: Utilized in circuits designed to shift voltage levels, ensuring compatibility between different components.
• Inverter Circuits: Functions as a crucial component in inverting circuits, providing the necessary signal inversion.

Features:

• Dual PNP Transistors: Features two PNP transistors integrated into a single package, maximizing space efficiency.
• Small SOT-363 Package: Compact surface-mount package suitable for high-density circuit board designs.
• Low Saturation Voltage: Facilitates efficient switching and minimizes power loss, enhancing overall performance.
• High Current Gain (hFE): Provides substantial amplification, crucial for reliable signal amplification.
• Fast Switching Speed: Enables rapid switching operations, contributing to faster circuit response times.

Benefits:

• Reduced Board Space: Integrates two transistors, optimizing board real estate and simplifying layout.
• Simplified Circuit Design: Streamlines circuit design processes, reducing complexity and development time.
• Improved Reliability: Ensures robust performance and longevity in a variety of environmental conditions.
• Cost-Effective Solution: Combines the functionality of two transistors at a cost-effective price point.
• Enhanced Circuit Efficiency: Low saturation voltage and high current gain contribute to improved circuit efficiency.

Technical Specifications:

Typical specifications for the EMZ2, and similar Rohm PNP transistor arrays in SOT-363 packages, generally include a collector-emitter voltage (VCEO) around 50V, a collector current (IC) in the range of 100-200mA, and a power dissipation (PD) of approximately 200-300mW. The current gain (hFE) usually varies from 85 to 300, depending on the operating conditions and specific variant. The operating temperature range typically spans from -55°C to +150°C.

The EMZ2 transistor array stands out for its compact design and efficient integration of two PNP transistors, making it suitable for a wide range of electronic applications. Its space-saving capabilities, combined with excellent electrical characteristics, make it a practical choice for designers aiming to optimize both space and performance in their circuits.
