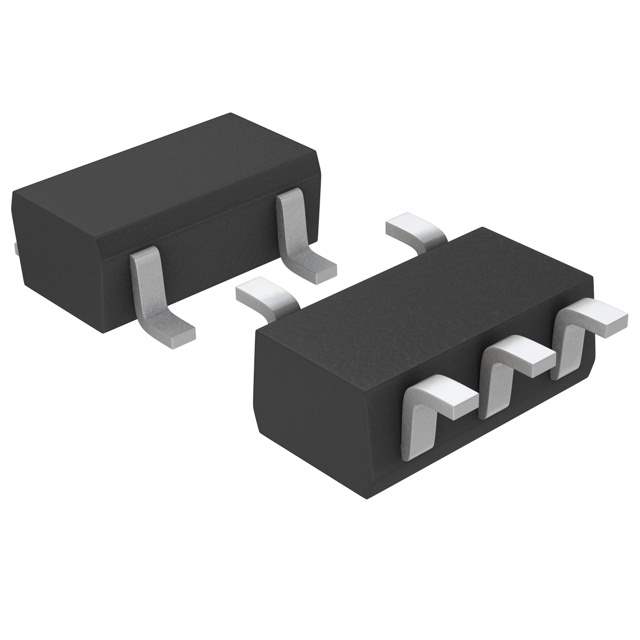

FMG9AT148 Real Image
Same model may have multiple batches, images only for reference.

FMG9AT148

Part No FMG9AT148
Manufacturer Rohm Semiconductor
Catalog Transistors (BJT) - Arrays, Pre - Biased
Description TRANS 2NPN PREBIAS 0.3W SMT5
Datasheet
FMG9AT148 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Active
Transistor Polarity 2 NPN - Pre-Biased (Dual)
Maximum Current Collector 100mA
VCEO Maximum Collector-Emitter Breakdown Voltage 50V
Resistor - Base (R1) (Ohms) 10k
Resistor - Emitter Base (R2) (Ohms) 10k
Typical Gain (hFE) (Min) 30 @ 5mA, 5V
Max Vce (sat) 300mV @ 500μA, 10mA
Collector Cut-off Current(Max) 500nA
Frequency - Transition 250MHz
Maximum Power Dissipation 300mW
Mounting SMD (SMT)
Case / Package SMT5
Win Source Part Number 097284-FMG9AT148
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian FMG9AT148 CAD Model

Description

The Rohm Semiconductor 097284-FMG9AT148 is a dual NPN pre-biased transistor.

  • Maximum Collector Current: 100mA
  • Collector-Emitter Breakdown Voltage: 50V
  • Transition Frequency: 250MHz
  • hFE Gain: 30 (typical at 5mA, 5V)
  • Application: Discrete semiconductor products
  • Package: SMT5
  • Maximum Power Dissipation: 300mW
  • Collector Cut-Off Current: 500nA
  • Resistor Values: 10k Ohms (Base and Emitter Base)
