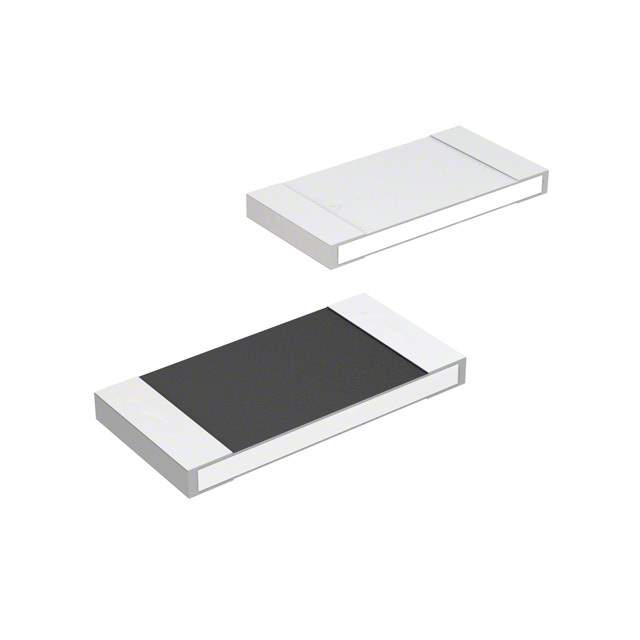

The MCR18EZPF1003 is a thick film chip resistor manufactured by Rohm Semiconductor. This component belongs to the MCR series, which are recognized for their high reliability and precision in electronic circuits. Designed for Surface Mount Technology (SMT) assembly, these resistors facilitate automated manufacturing.

Applications

• Power supplies
• Automotive electronics
• Industrial control systems
• Consumer electronics
• LED lighting

Features

• Resistance Value: 100 kOhms
• Power Rating: 0.25W (1/4W)
• Tolerance: ±1%
• Temperature Coefficient: ±100 ppm/°C
• Package: 1206 (3216 Metric)
• Termination: Surface Mount
• RoHS Compliant: Yes

Benefits

• High Precision: Offers a 1% tolerance, ensuring accurate and consistent resistance in circuits.
• Reliable Performance: Constructed using thick film technology, providing stability and reliability over a wide operating temperature range.
• SMT Compatibility: Designed for surface mount assembly, streamlining the manufacturing process.
• Wide Range of Applications: Suitable for various applications due to its robust design and specifications.
• Space Saving: The 1206 package is relatively small, enabling high-density circuit designs.

Additional Details

The MCR18EZPF1003 resistor is designed to operate within a temperature range of -55°C to +155°C. Its maximum operating voltage is dictated by the power rating and resistance value. The thick film resistive element is meticulously manufactured and laser-trimmed to achieve the specified resistance and tolerance. This resistor serves as a dependable solution for current limiting, voltage division, and general resistive functions in electronic circuits. It is often employed in signal conditioning, filter networks, and feedback loops. The resistor is lead-free and RoHS compliant, adhering to environmental regulations for electronic components, making it an environmentally responsible choice for modern electronic designs.
