Same model may have multiple batches, images only for reference.

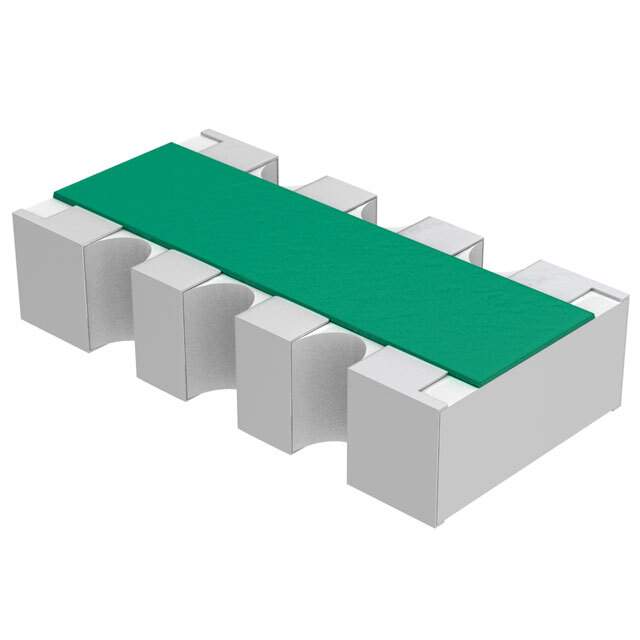

MNR04M0APJ470 Real Image
Same model may have multiple batches, images only for reference.

MNR04M0APJ470

Part No MNR04M0APJ470
Manufacturer Rohm Semiconductor
Catalog Resistor Networks, Arrays
Description RES ARRAY 4 RES 47 OHM 0804 / 47 Ohm ±5% 62.5mW Power Per Element Isolated 4 Resistor Network/Array ±200ppm/°C 0804, Convex, Long Side Terminals
Datasheet
MNR04M0APJ470 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Resistor Networks, Arrays
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Circuit Type Isolated
Resistance (Ohms) 47
Tolerance ±5%
Number of Resistors 4
Number of Pins 8
Power Per Element 62.5mW
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Applications Automotive AEC-Q200
Mounting Surface Mount
Case / Package 0804, Convex, Long Side Terminals
Size / Dimension 0.079" L x 0.039" W (2.00mm x 1.00mm)
Height - Seated (Max) 0.018" (0.45mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0020
Other Part Number MNR04470RTR,MNR04470RCT,MNR04470RDKR
Standard Package 10,000
Win Source Part Number 1328260-MNR04M0APJ470
Ultra Librarian 3D Model Ultra Librarian MNR04M0APJ470 CAD Model

Description

The Rohm Semiconductor 1328260-MNR04M0APJ470 is a resistor network that is designed for use in various electronic devices.

  • Manufacturer: Rohm Semiconductor
  • Mounting: Surface mount
  • Tolerance: ±5%
  • Temperature Coefficient: ±200ppm/°C
  • Compliance: AEC-Q200
  • Application: Automotive
  • Package Quantity: 10,000 pieces
