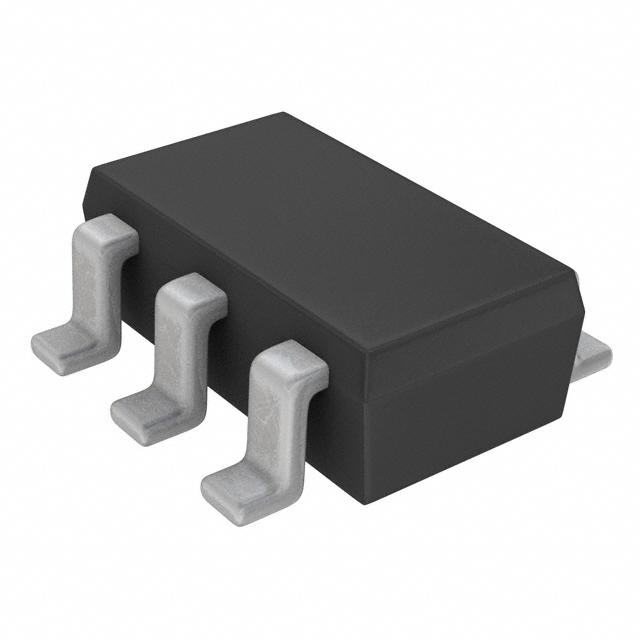

QS6U22TR

Name: QS6U22TR
Brand: Rohm Semiconductor
SKU: 507721
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	QS6U22TR
Manufacturer	Rohm Semiconductor
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET P-CH 20V 1.5A TSMT6
Datasheet	QS6U22TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Rohm Semiconductor
Packaging	Reel - TR
Status	Active
Polarity	P-Channel
Technology	MOSFET
Drain-Source Breakdown Voltage	20V
Continuous Drain Current at 25°C	1.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Gate-Source Threshold Voltage	2V @ 1mA
Max Gate Charge	3nC @ 4.5V
Max Input Capacitance	270pF @ 10V
Maximum Gate-Source Voltage	±12V
FET Feature	Schottky Diode (Isolated)
Power Dissipation (Max)	1.25W (Ta)
Maximum Rds On at Id,Vgs	215 mOhm @ 1.5A, 4.5V
Temperature Range - Operating	150°C (TJ)
Mounting	SMD (SMT)
Case / Package	TSMT6 (SC-95)
Dimension	SOT-23-6 Thin, TSOT-23-6
Win Source Part Number	1091089-QS6U22TR
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian QS6U22TR CAD Model

Alternative Products

Description

The Rohm Semiconductor QS6U22TR is a P-channel MOSFET transistor with a Schottky diode (isolated) feature.

Drain-Source Breakdown Voltage: 20V
Continuous Drain Current: 1.5A (Ta) @ 25°C
Maximum Rds on @ Id, Vgs: 215 mOhm @ 1.5A, 4.5V
Drive Voltage: 2.5V, 4.5V
Gate-Source Threshold Voltage: 2V @ 1mA
Maximum Gate-Source Voltage: ±12V
Maximum Gate Charge: 3nC @ 4.5V
Maximum Input Capacitance: 270pF @ 10V
Mounting: SMD (SMT)
Operating Temperature: 150°C (TJ)
Case/Package: TSMT6 (SC-95)
