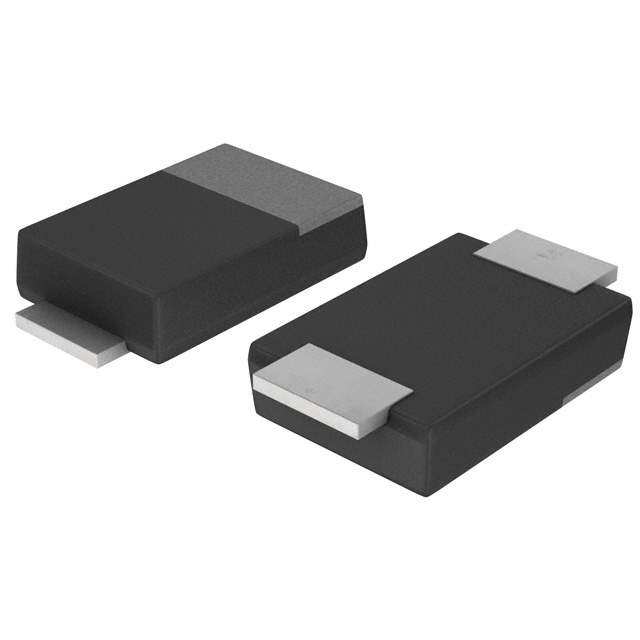

The RB055LA-40G TR is a Schottky Barrier Diode manufactured by Rohm Semiconductor. This diode is designed for high-speed switching applications and features a low forward voltage drop, making it suitable for various power management and protection circuits.

Applications:

• DC-DC converters
• Reverse polarity protection
• Switching power supplies
• High-frequency rectification
• Free-wheeling diodes

Features:

• Low forward voltage (Vf = 0.44V typ. @ 0.5A)
• High-speed switching
• Small surface mount package
• Low IR (Reverse Leakage Current)
• High surge current capability

Benefits:

• Improved efficiency in power conversion due to low forward voltage drop.
• Fast recovery time reduces switching losses in high-frequency applications.
• Compact size allows for space-saving designs.
• Enhanced reliability and longevity in demanding environments.
• Protection against reverse polarity damage.

Additional Details:

The RB055LA-40G TR has a maximum repetitive peak reverse voltage (VRRM) of 40V and a maximum average forward current (IF(AV)) of 0.5A. It is available in a small surface mount package, typically a SOD-323. The operating temperature range is typically -40°C to +125°C. Its low forward voltage drop minimizes power dissipation and enhances the overall efficiency of the circuit. It is RoHS compliant. This diode is commonly used to protect sensitive circuits from reverse polarity and to improve the efficiency of switching power supplies.
