Same model may have multiple batches, images only for reference.

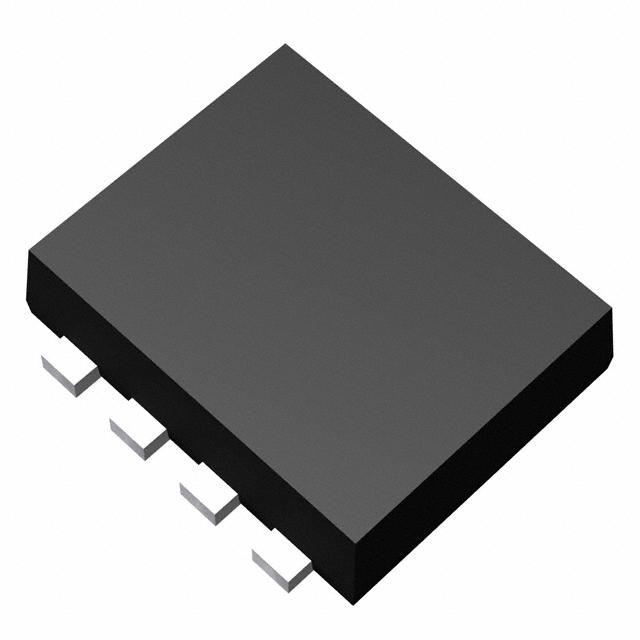

RB061US-30TR Rohm Semiconductor
Same model may have multiple batches, images only for reference.

RB061US-30TR

Part No RB061US-30TR
Manufacturer Rohm Semiconductor
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 30V TSMD8
Datasheet
RB061US-30TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Active
Diode Configuration 2 Independent
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) (per Diode) 2A
Voltage - Forward (Vf) (Max) @ If 400mV @ 2A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 900μA @ 15V
Operating Temperature - Junction 125°C (Max)
Mounting SMD (SMT)
Case / Package TSMD8
Win Source Part Number 099890-RB061US-30TR
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian RB061US-30TR CAD Model

Description

The Rohm Semiconductor RB061US-30TR is a Schottky diode with a maximum reverse voltage of 30V and a forward voltage of 400mV at 2A.

  • Maximum Reverse Voltage: 30V
  • Forward Voltage: 400mV @ 2A
  • Current Reverse Leakage @ Vr: 900μA @ 15V
  • Operating Temperature Range: Up to 125°C
  • Package/Case: TSMD8
  • Diode Configuration: Two independent diodes
  • Average Rectified Current per Diode: 2A
  • Fast Recovery Speed: 200mA (Io)
