The Rohm Semiconductor RD3L140SPTL1 is a P-channel MOSFET transistor with a drain to source voltage of 60V and a continuous drain current of 14A (Ta).

• Channel Type: P-channel
• Drain to Source Voltage: 60V
• Continuous Drain Current: 14A (Ta)
• Rds On (Max) @ Id, Vgs: 84mOhm @ 14A, 10V
• Vgs(th) (Max) @ Id: 3V @ 1mA
• Gate Charge (Qg) (Max) @ Vgs: 27 nC @ 10 V
• Input Capacitance (Ciss) (Max) @ Vds: 1900 pF @ 10 V
• Power Dissipation (Max): 20W (Tc)
• Operating Temperature: 150°C (TJ)

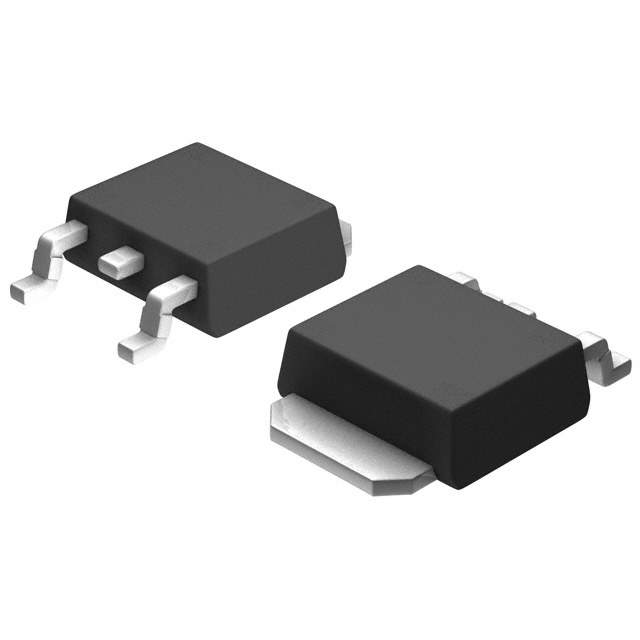

• Package: TO-252-3, DPak (2 Leads + Tab), SC-63
• ECCN: EAR99
