The 1092803-RSQ020N03TR is a MOSFET component from Rohm Semiconductor.

• Channel Type: N-channel
• Drain-Source Breakdown Voltage: 30V
• Continuous Drain Current (25 degrees Celsius): 2A (Ta)
• Maximum Rds On (Id,Vgs): 134 mOhm @ 2A, 10V
• Mounting: SMD (SMT)
• Power Dissipation (max): 600mW (Ta)
• Drive Voltage (max Rds On, Min Rds On): 4V, 10V
• Gate-Source Threshold Voltage: 2.5V @ 1mA

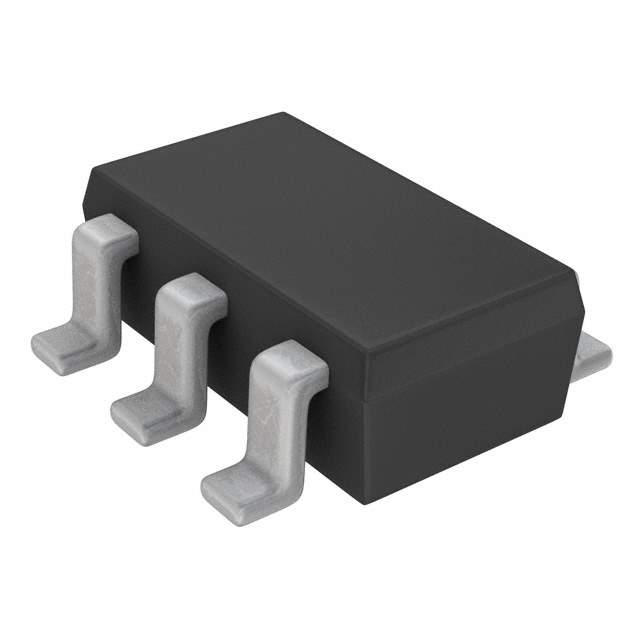

• Package: TSMT6 (SC-95)
• Dimension: SOT-23-6 Thin, TSOT-23-6
• Maximum Gate-Source Voltage: ±20V
• Maximum Gate Charge: 3.1nC @ 5V
• Maximum Input Capacitance: 110pF @ 10V
• Supply and Demand Status: Balanced
