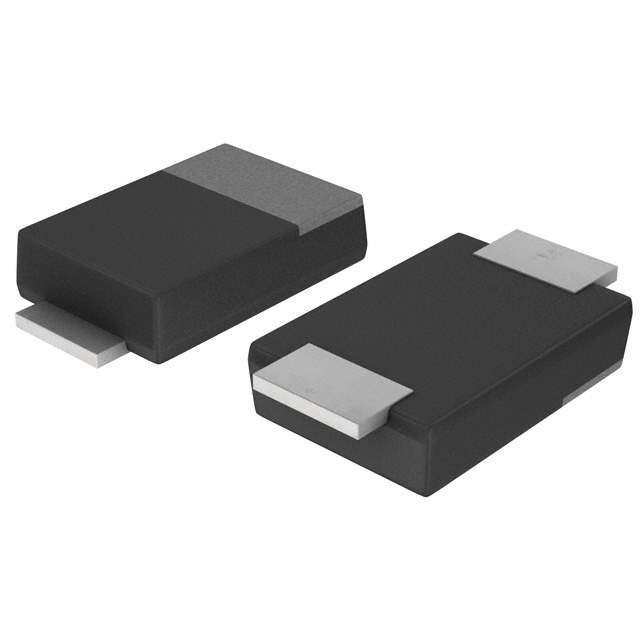

The RSX301LA-30TR is a Schottky Barrier Diode manufactured by Rohm Semiconductor. This diode is characterized by its low forward voltage drop and high-speed switching capabilities, making it suitable for use in a variety of electronic applications.

Applications:

• High-Frequency Rectification: Efficiently converts AC to DC in high-frequency applications.
• Switching Power Supplies: Improves the efficiency of power supplies by reducing switching losses.
• DC-DC Converters: Suitable for use in DC-DC converters to regulate voltage levels efficiently.
• Reverse Polarity Protection: Protects sensitive electronic components from damage due to reverse voltage conditions.
• Free-wheeling Diode in Inductive Circuits: Prevents voltage spikes when switching inductive loads.

Features:

• Low Forward Voltage Drop: Minimizes power loss and improves overall circuit efficiency.
• High-Speed Switching: Enables fast switching speeds for high-frequency applications.
• Small Surface Mount Package: Facilitates compact designs and automated assembly.
• High Surge Current Capability: Provides robustness against transient voltage spikes.
• Pb-Free (RoHS Compliant): Meets environmental standards for lead-free components.

Benefits:

• Improved Efficiency: Low forward voltage drop reduces power dissipation, leading to increased efficiency.
• Enhanced Performance: High-speed switching enables better performance in high-frequency circuits.
• Compact Design: The small package allows for miniaturization of electronic devices.
• Increased Reliability: The high surge current capability ensures robust operation under transient conditions.
• Environmental Compliance: RoHS compliance ensures the component is environmentally friendly.

The RSX301LA-30TR is designed to provide efficient and reliable performance in modern electronic circuits. Its low forward voltage drop ensures minimal power loss, while its high-speed switching capabilities allow for use in high-frequency applications. The small surface mount package is advantageous for compact designs and automated assembly. Additionally, the diode’s high surge current capability ensures it can withstand transient voltage spikes, providing increased reliability. This device is a suitable choice for various applications where efficiency and reliability are crucial.
