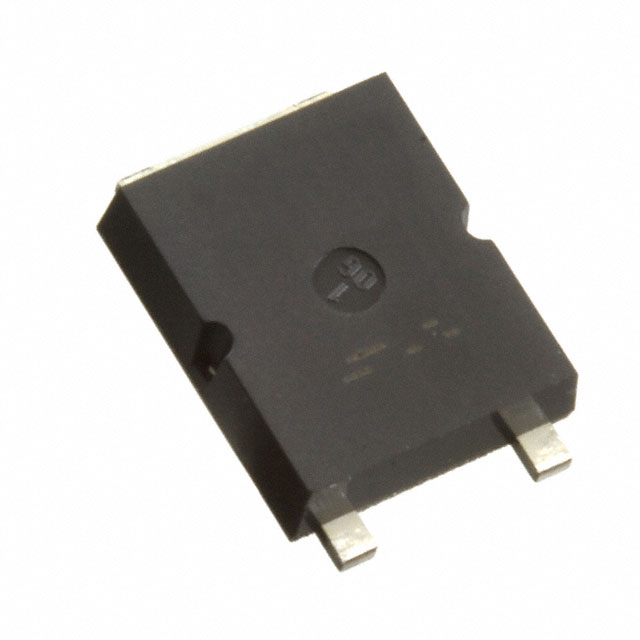

Same model may have multiple batches, images only for reference.
RSY200N05TL Rohm Semiconductor
Same model may have multiple batches, images only for reference.

RSY200N05TL

Part No RSY200N05TL
Manufacturer Rohm Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 45V 20A TCPT3
Datasheet
RSY200N05TL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Not For New Designs
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 45V
Continuous Drain Current at 25°C 20A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 20W (Ta)
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Case / Package TCPT3
Dimension 3-SMD, Flat Leads
Win Source Part Number 099126-RSY200N05TL
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian RSY200N05TL CAD Model

Description

The RSY200N05TL is an N-channel MOSFET with a power dissipation of 20W (Ta) and a drain-source breakdown voltage of 45V.

  • Power Dissipation: 20W (Ta)
  • Drain-Source Breakdown Voltage: 45V
  • Current Rating: 20A (Ta)
  • Drive Voltage: 4.5V, 10V
  • Mounting Type: Surface Mount Device (SMD)
  • Temperature Range: 150°C (TJ)
  • Supply and Demand Status: Sufficient
