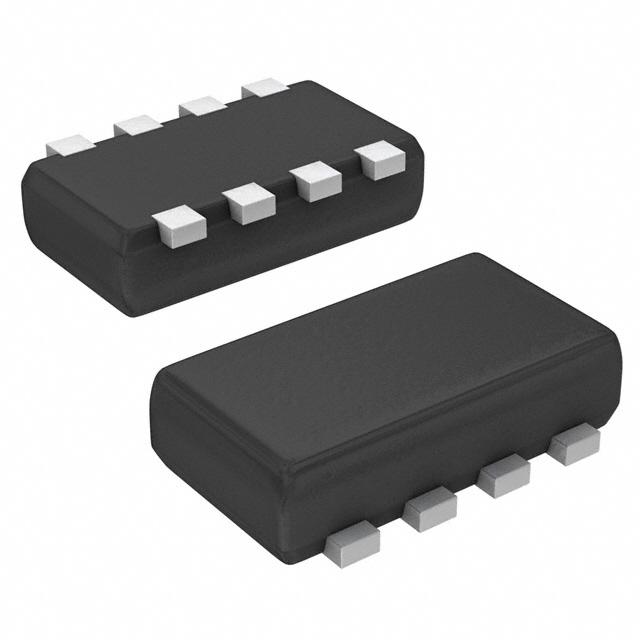

Same model may have multiple batches, images only for reference.
RT1A050ZPTR Rohm Semiconductor
Same model may have multiple batches, images only for reference.

RT1A050ZPTR

Part No RT1A050ZPTR
Manufacturer Rohm Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET P-CH 12V 5A TSST8
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Active
Polarity P-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 12V
Continuous Drain Current at 25°C 5A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 1.5V, 4.5V
Gate-Source Threshold Voltage 1V @ 1mA
Max Gate Charge 34nC @ 4.5V
Max Input Capacitance 2800pF @ 6V
Maximum Gate-Source Voltage ±10V
Power Dissipation (Max) 600mW (Ta)
Maximum Rds On at Id,Vgs 26 mOhm @ 5A, 4.5V
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Case / Package 8-TSST
Dimension 8-SMD, Flat Lead
Win Source Part Number 027545-RT1A050ZPTR
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian RT1A050ZPTR CAD Model

Description

The Rohm Semiconductor RT1A050ZPTR is a P-channel MOSFET transistor that is packaged in an 8-TSST case.

  • Power Dissipation: 600mW (Maximum)
  • Continuous Drain Current: 5A @ 25°C (Maximum)
  • Rds On: 26 mOhm @ 5A and 4.5V (Maximum)
  • Manufacturer: Rohm Semiconductor
  • Drive Voltage: 1.5V and 4.5V
  • Gate-Source Voltage: ±10V (Maximum)
