Same model may have multiple batches, images only for reference.

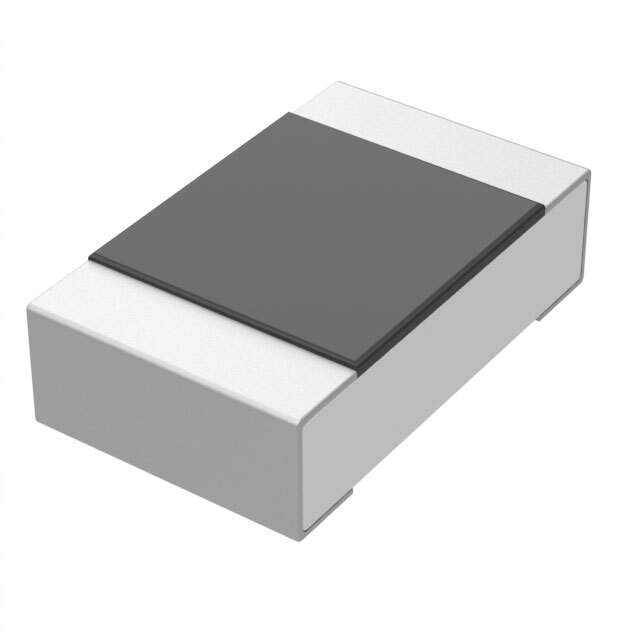

SFR03EZPF1004 Real Image
Same model may have multiple batches, images only for reference.

SFR03EZPF1004

Part No SFR03EZPF1004
Manufacturer Rohm Semiconductor
Catalog Chip Resistor - Surface Mount
Description RES 1 MOHM 1% 1/10W 0603  /  1 MOhms ±1% 0.1W, 1/10W Chip Resistor 0603 (1608 Metric) Anti-Sulfur Thick Film
Datasheet
SFR03EZPF1004 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Rohm Semiconductor
Series SFR
Package Tape & Reel
Resistance 1 mOhms
Tolerance ±1%
Power (Watts) 0.1W, 1/10W
Composition Thick Film
Features Anti-Sulfur
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) 0.022" (0.55mm)
Number of Terminations 2
Other Names 511-1820-1,511-1820-2,511-1820-6
Standard Package 5,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1237084-SFR03EZPF1004
Ultra Librarian 3D Model Ultra Librarian SFR03EZPF1004 CAD Model

Description

The 1237084-SFR03EZPF1004 is a chip resistor surface mount electronic component.

  • Manufacturer: Rohm Semiconductor
  • Series: SFR
  • Package: Tape and Reel
  • Height: 0.022" (0.55mm)
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • Power Rating: 0.1W or 1/10W
  • Composition: Thick Film
  • Terminations: 2
  • Resistance: 1 mOhms
  • Supplier Device Package: 0603 (1608 Metric)
  • Manufacturer Package: 0603 (1608 Metric)
  • Temperature Range: -55°C ~ 155°C
  • Dimension: 0.063" L x 0.031" W (1.60mm x 0.80mm)
  • MSL Level: 1 (Unlimited)
  • REACH: Unaffected
