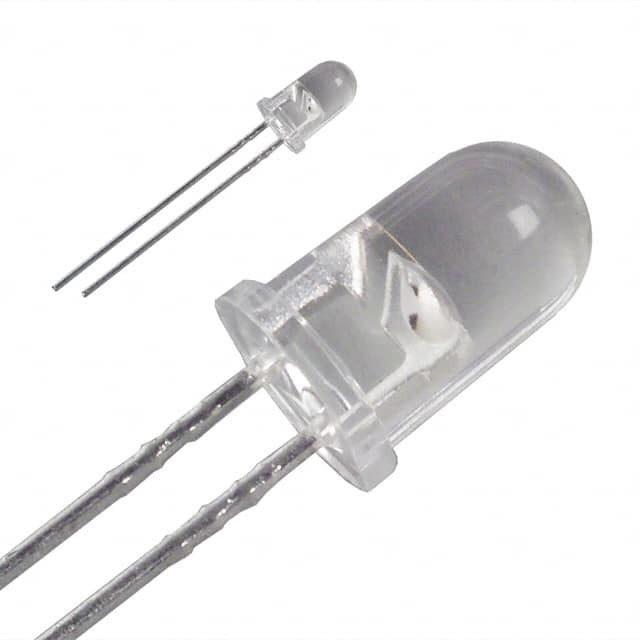

SIR-563ST3FN Rohm Semiconductor
Same model may have multiple batches, images only for reference.

SIR-563ST3FN

Part No SIR-563ST3FN
Manufacturer Rohm Semiconductor
Catalog Infrared, UV, Visible Emitters
Description EMITTER IR 940NM 100MA T 1 3/4  /  Infrared (IR) Emitter 940nm 1.34V 100mA 9mW/sr @ 50mA 30° T 1 3/4
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Emitters - Infrared, UV, Visible
Mfr Rohm Semiconductor
Package Bulk
Type Infrared (IR)
Current - DC Forward (If) (Max) 100mA
Radiant Intensity (Ie) Min @ If 9mW/sr @ 50mA
Wavelength 940nm
Voltage - Forward (Vf) (Typ) 1.34V
Viewing Angle 30°
Orientation Top View
Temperature Range - Operating -25°C ~ 85°C (TA)
Mounting Type Through Hole
Package / Case T 1 3/4
Base Product Number SIR-563
Other Names SIR-563ST3FP,SIR-563ST3FO,SIR563ST3FM,SIR-563ST3FM,SIR-563ST3F,511-1365,SIR-563ST3FQ,SIR-563ST3F,SIR-563ST3FF
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242355-SIR-563ST3FN
Ultra Librarian 3D Model Ultra Librarian SIR-563ST3FN CAD Model

Description

The SIR-563ST3FN is an infrared LED emitter component from Rohm Semiconductor. It emits infrared light with a wavelength of 940nm and has a viewing angle of 30 degrees.

  • Radiant Intensity: 9mW/sr @ 50mA
  • Forward Voltage: 1.34V @ 100mA
  • Mounting Type: Through-hole
  • Package/Case: T 1 3/4
  • Suitable for: Optoelectronics applications, particularly in LED emitters-infrared, UV, visible category.
