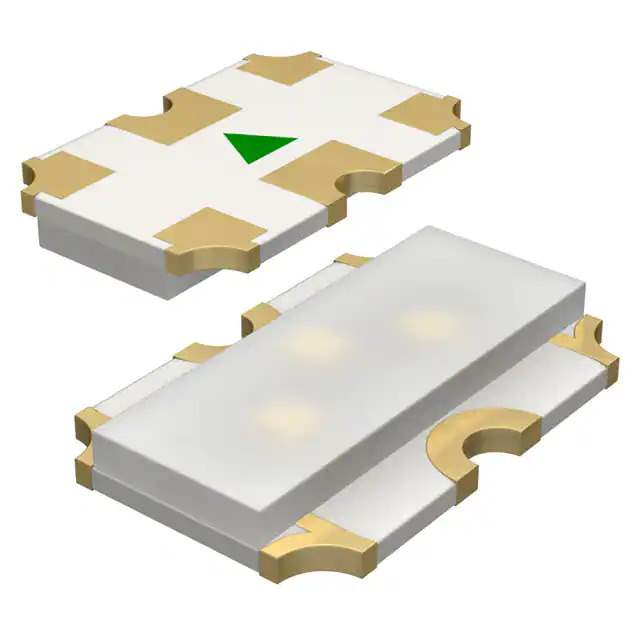

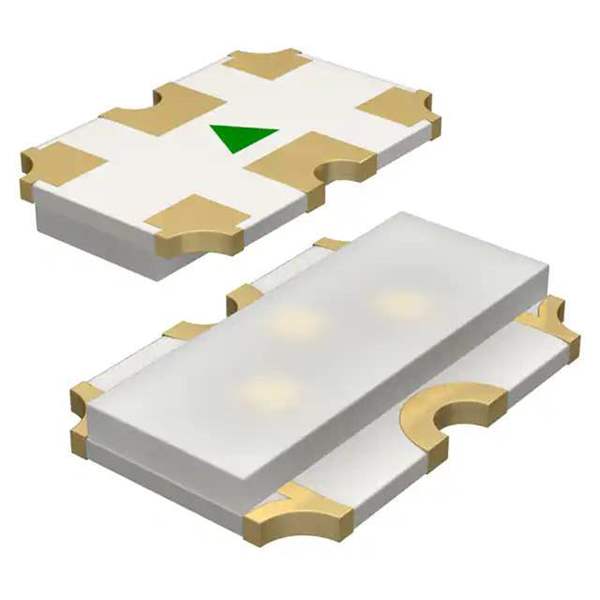

Same model may have multiple batches, images only for reference.

SMLP36RGB2W3R

Name: SMLP36RGB2W3R
Brand: Rohm Semiconductor
SKU: 843741
Availability: InStock
Rating: 4.91 (146 reviews)

Get a Quote

Part No	SMLP36RGB2W3R
Manufacturer	Rohm Semiconductor
Catalog	LED Indication - Discrete
Description	LED RGB DIFFUSED 1510 SMD
Datasheet	SMLP36RGB2W3R Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Optoelectronics - LED Indication - Discrete
Mfr	Rohm Semiconductor
Series	PicoLED™
Package	Tape & Reel
Product Status	Obsolete
Color	Red, Green, Blue (RGB)
Configuration	Independent
Lens Color	White
Lens Transparency	Diffused
Millicandela Rating	35mcd Red, 110mcd Green, 35mcd Blue
Lens Style	Rectangle with Flat Top
Lens Size	1.50mm x 0.60mm
Voltage - Forward (Vf) (Typ)	2.1V Red, 3.1V Green, 3V Blue
Current - Test	5mA Red, 5mA Green, 5mA Blue
Mounting Type	Surface Mount
Wavelength - Dominant	624nm Red, 527nm Green, 470nm Blue
Package / Case	0604 (1510 Metric)
Supplier Device Package	PICOLED
Size / Dimension	1.50mm L x 1.00mm W
Height (Max)	0.25mm
Base Product Number	SMLP36
Standard Package	5,000 pcs
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.41.0000
Win Source Part Number	843741-SMLP36RGB2W3R
Ultra Librarian 3D Model	Ultra Librarian SMLP36RGB2W3R CAD Model

Alternative Products

Description

The SMLP36RGB2W3R is a discrete LED indication component designed for optoelectronics applications.

Series: PicoLED™
Colors: Red, Green, and Blue (RGB)
Mounting Type: Surface Mount
Package: Tape and Reel
Pieces per Package: 5,000
Length: 1.50mm
Width: 1.00mm
Configuration: Independent
Lens Transparency: Diffused
Millicandela Rating (Red): 35mcd
Millicandela Rating (Green): 110mcd
Millicandela Rating (Blue): 35mcd
Forward Voltage (Red): 2.1V
Forward Voltage (Blue): 3V
Current Test: 5mA for all colors
Dominant Wavelength (Red): 624nm
Dominant Wavelength (Green): 527nm
Dominant Wavelength (Blue): 470nm
Height: 0.25mm
Status: Obsolete product from Rohm Semiconductor
