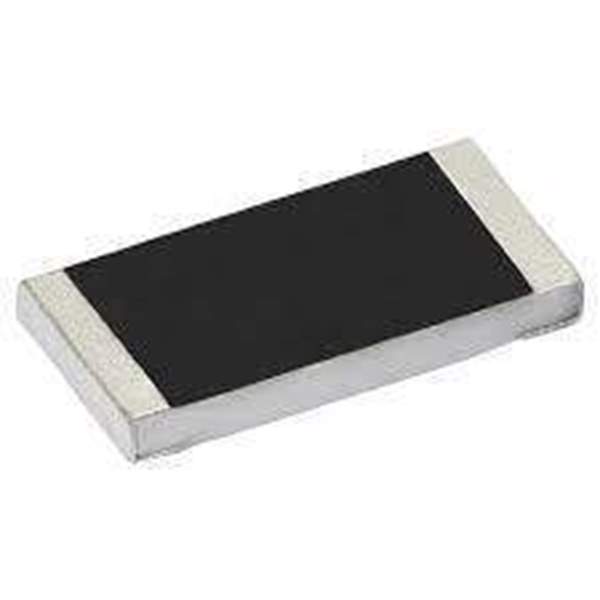

0603WAF1401T5E Royalohm
Same model may have multiple batches, images only for reference.

0603WAF1401T5E

Part No 0603WAF1401T5E
Manufacturer Royal Ohm
Catalog Resistors
Description Thick Film Resistors - SMD RMC 0603 1/10W 1% T/R-5000
Datasheet
0603WAF1401T5E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1308418-0603WAF1401T5E
Manufacturer Royalohm
Category Thick Film Resistors - SMD
Resistance (Ohms) 1.4 kOhms
Power Rating 100 mW (1/10 W)
Tolerance 1 %
Temperature Coefficient 200 PPM / C
Operating Temperature (Min) - 55 C
Operating Temperature (Max) + 125 C
Voltage Rating 75 V
Application General Purpose
Ultra Librarian 3D Model Ultra Librarian 0603WAF1401T5E CAD Model

Description

  • Small size & light weight
  • Reduction of assembly costs and matching with placement machine.
  • Suitable for both wave & re-flow soldering.
  • Applications: Navigator (GPS), Mobile Phone, Telecom, PDA, Digital CATV Receiver, Meter.
