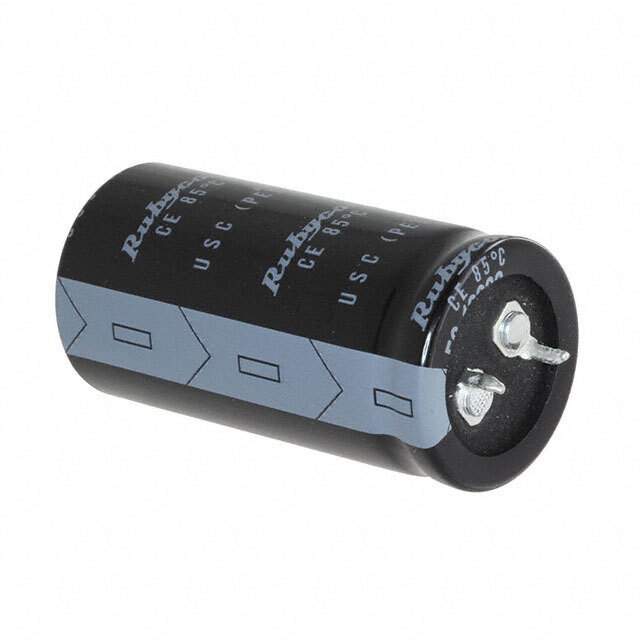

100USC3300MEFCSN25X50 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Rubycon
Series USC
Packaging Bulk
Capacitance 3300μF
Tolerance ±20%
Voltage Rating 100V
Lifetime @ Temp. 3000 Hrs @ 85°C
Operating Temperature Range -40°C ~ 85°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 4.06A @ 120Hz
Ripple Current - High Frequency 4.669A @ 10kHz
Lead Spacing 0.394" (10.00mm)
Dimension 0.984" Dia (25.00mm)
Height - Seated (Maximum) 2.047" (52.00mm)
Mounting Style Through Hole
Package Radial, Can - Snap-In
Win Source Part Number 770933-100USC3300MEFCSN25X50
Popularity Medium
Supply and Demand Status Limited
Family Name USC
ECCN EAR99
Ultra Librarian 3D Model Ultra Librarian 100USC3300MEFCSN25X50 CAD Model

Description

The Rubycon USC series capacitor is a radial, can - snap-in type capacitor with a capacitance of 3300μF and a voltage rating of 100V.

  • Capacitance: 3300μF
  • Voltage Rating: 100V
  • Tolerance: ±20%
  • Lead Spacing: 0.394" (10.00mm)
  • Ripple Current @ 120Hz (Low Frequency): 4.06A
  • Ripple Current @ 10kHz (High Frequency): 4.669A
  • Lifetime: 3000 Hrs @ 85°C
  • Polarization: Polarized
  • Applications: General
  • Dimensions: 0.984" Dia (25.00mm)
  • Height - Seated (Maximum): 2.047" (52.00mm)
  • Category: Capacitors
  • Family: USC
