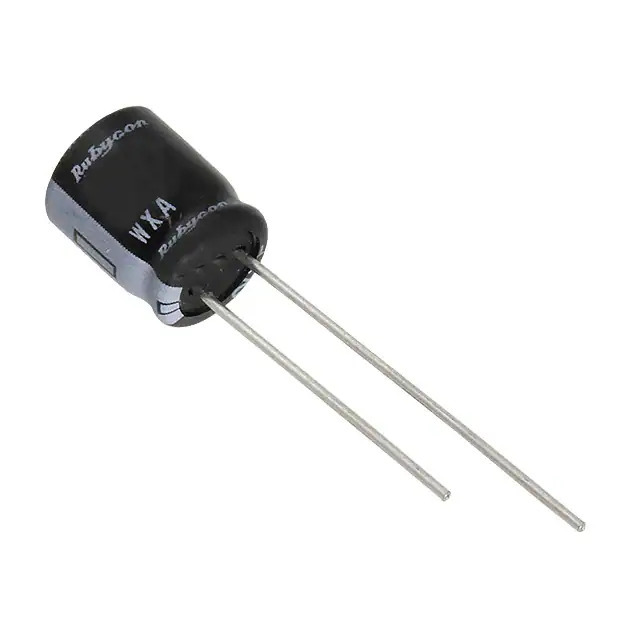

16WXA470MEFC8X9 Rubycon
Same model may have multiple batches, images only for reference.

16WXA470MEFC8X9

Part No 16WXA470MEFC8X9
Manufacturer Rubycon
Catalog Aluminum Capacitors
Description CAP ALUM 470UF 20% 16V RADIAL / 470 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series WXA
Package Bulk
Product Status Active
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 310 mA @ 120 Hz
Ripple Current @ High Frequency 372 mA @ 10 kHz
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358160-16WXA470MEFC8X9
Ultra Librarian 3D Model Ultra Librarian 16WXA470MEFC8X9 CAD Model

Description

The Rubycon WXA series capacitors are aluminum electrolytic capacitors with a capacitance of 470 µF and a voltage rating of 16 V.

  • Product Name: WXA series
  • Manufacturer: Rubycon
  • Capacitance: 470 µF
  • Voltage Rating: 16 V
  • Tolerance: ±20%
  • Application: Automotive
  • Temperature Range: -55°C to 105°C
  • Lifetime: 2000 hours @ 105°C
  • Ripple Current (Low Frequency): 310 mA @ 120 Hz
  • Ripple Current (High Frequency): 372 mA @ 10 kHz
  • Package: Radial, Can
  • Lead Spacing: 0.138" (3.50mm)
  • Mounting Type: Through Hole
  • Size: 0.315" Dia (8.00mm)
  • Height: 0.413" (10.50mm)
  • Series Rating: AEC-Q200
  • Surface Mount Land Size: -
