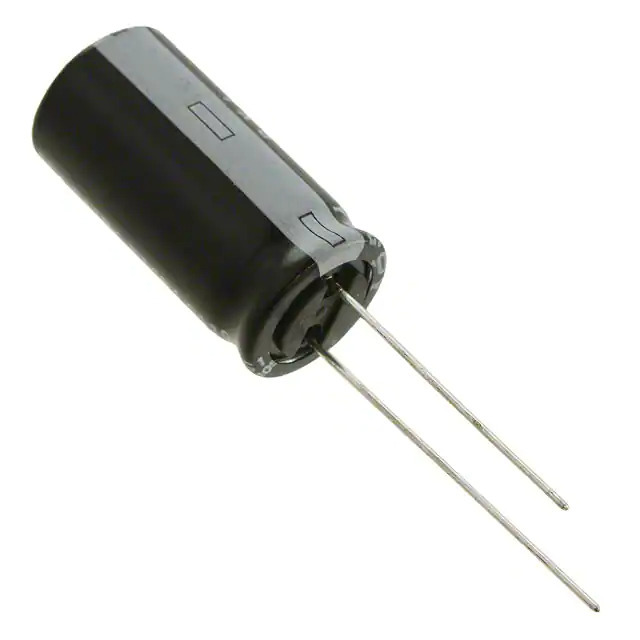

Same model may have multiple batches, images only for reference.

16YXG2200MEFC12.5X25

Name: 16YXG2200MEFC12.5X25
Brand: Rubycon
SKU: 1357842
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	16YXG2200MEFC12.5X25
Manufacturer	Rubycon
Catalog	Aluminum Capacitors
Description	CAP ALUM 2200UF 20% 16V RADIAL / 2200 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Rubycon
Series	YXG
Package	Bulk
Product Status	Active
Capacitance	2200 µF
Tolerance	±20%
Voltage - Rated	16 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	6000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.561 A @ 120 Hz
Ripple Current @ High Frequency	2.23 A @ 100 kHz
Impedance	27 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	1.063" (27.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1357842-16YXG2200MEFC12.5X25
Ultra Librarian 3D Model	Ultra Librarian 16YXG2200MEFC12.5X25 CAD Model

Description

The Rubycon 1357842-16YXG2200MEFC12.5X25 is a high-capacity aluminum electrolytic capacitor suitable for general-purpose applications and is manufactured by Rubycon.

Capacitance: 2200 µF
Voltage Rating: 16 V
Tolerance: ±20%
Ripple Current (Low Frequency): 1.561 A @ 120 Hz
Ripple Current (High Frequency): 2.23 A @ 100 kHz
Package: Radial, Can
Mounting Type: Through Hole
Size: 0.492" Dia
Height: 1.063"
Lifetime: 6000 hours @ 105°C
Series: YXG
Product Status: Active
