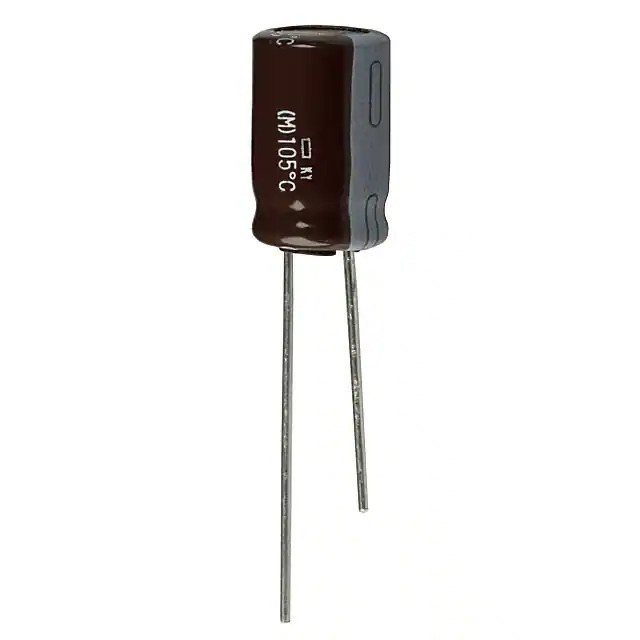

EKY-350ELL331MJ16S United Chemi-Con
Same model may have multiple batches, images only for reference.

EKY-350ELL331MJ16S

Part No EKY-350ELL331MJ16S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 330UF 20% 35V RADIAL / 330 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series KY
Package Bulk
Product Status Active
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 7000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 605 mA @ 120 Hz
Ripple Current @ High Frequency 1.21 A @ 100 kHz
Impedance 60 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.630" (16.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358048-EKY-350ELL331MJ16S
Ultra Librarian 3D Model Ultra Librarian EKY-350ELL331MJ16S CAD Model

Description

The 1358048-EKY-350ELL331MJ16S is an aluminum electrolytic capacitor from United Chemi-Con.

  • Applications: General Purpose
  • Series: KY
  • Capacitance: 330 μF
  • Voltage - Rated: 35 V
  • Tolerance: ±20%
  • Operating Temperature: -40°C ~ 105°C
  • Lifetime @ Temp.: 7000 Hrs @ 105°C
  • Ripple Current @ Low Frequency: 605 mA @ 120 Hz
  • Ripple Current @ High Frequency: 1.21 A @ 100 kHz
  • Package / Case: Radial, Can
  • Mounting Type: Through Hole
  • Size / Dimension: 0.394" Dia (10.00mm)
  • Height - Seated (Max): 0.630" (16.00mm)
  • REACH: Unaffected
  • ECCN: EAR99
